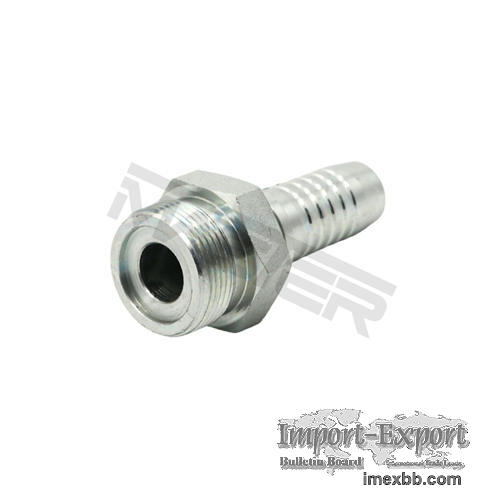

10311 Male Metric Flat Face Fitting

Product Description
The 10311 Metric Male Flat Seat Fitting is a hydraulic hose fitting with a
metric external thread, featuring a 24° conical sealing surface and an O-ring
flat seal design. This fitting is capable of creating a leak-free connection
and is widely used in hydraulic systems.
Product Parameter
PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
10311-12-04 M12X1.25 6 4 22.5 10 14
10311-12-04D M12X1.5 6 4 23.5 11 14
10311-14-04 M14X1.5 6 4 23.5 11 14
10311-16-04 M16X1.5 6 4 23.5 11 17
10311-16-05 M16X1.5 8 5 23.5 11 17
10311-16-06 M16X1.5 10 6 23.5 11 17
10311-18-06 M18X1.5 10 6 23.5 11 19
10311-22-05 M22X1.5 8 5 27 12 24
10311-22-06 M22X1.5 10 6 27 12 24
10311-22-08 M22X1.5 12 8 27 12 24
10311-27-10 M27X1.5 16 10 31.5 13 30
10311-30-12 M30X1.5 20 12 33.5 14 32
10311-36-12 M36X2 20 12 35.5 16 38
10311-36-14 M36X2 22 14 35.5 16 38
10311-39-16 M39X2 25 16 39 16 41
10311-45-20 M45X2 32 20 44.5 20 46
10311-52-24 M52X2 40 24 47.5 22 55
10311-64-32 M64X2 50 32 52.5 27 65
 Looking for a reliable supplier of hydraulic metric flat seat fitting
components? MASTER is a leading manufacturer in China with over 30 years of
experience in producing precision hydraulic fittings that meet international
standards. We offer a full range of metric flat seat fittings, a type of metric
hydraulic fitting, designed for secure, leak-free connections in both mobile
and industrial hydraulic systems.
