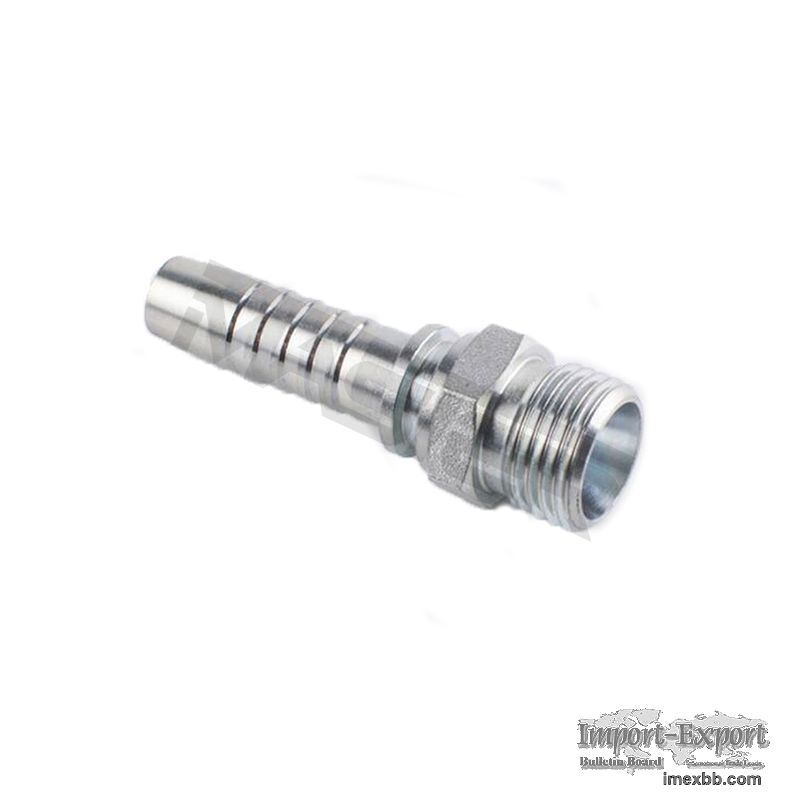

10611 Male 60° Cone Fitting

Product Description
The 10611 male hydraulic fitting with a metric thread is designed with a 60-
degree cone, which pairs perfectly with a matching 60-degree cone female
thread. This configuration allows the tapered surfaces to create a tight and
secure seal, ensuring reliable connection performance.
Product Parameter
PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
10611-14-04 M14*1.5 6 4 23.5 11 19
10611-14-06 M14*1.5 10 6 24 11 19
10611-16-04 M16*1.5 6 4 27.5 12 22
10611-16-05 M16*1.5 8 5 26.5 12 22
10611-18-06 M18*1.5 10 6 29.5 12 24
10611-22-06 M22*1.5 10 6 30.5 14 27
10611-22-08 M22*1.5 12 8 32 14 27
10611-24-10 M24*1.5 16 10 35 14 30
10611-26-10 M26*1.5 16 10 35 16 32
10611-27-10D M27*1.5 16 10 35 16 32
10611-27-10 M27*2 16 10 37 18 32
10611-30-12D M30*1.5 20 12 38 18 36
10611-30-12 M30*2 20 12 38 18 36
10611-33-16 M33*2 25 16 43 20 46
10611-42-20 M42*2 32 20 46 20 50
10611-45-20 M45*2 32 20 46 20 55
10611-48-24 M48*2 40 24 46 20 55
10611-52-24 M52*2 40 24 46 20 60
MASTER is a professional manufacturer and supplier of 60 cone hydraulic
fittings based in China. With over 30 years of experience in metric hydraulic
fitting manufacturing, we deliver precision-engineered fittings designed to
provide secure, leak-free connections in hydraulic systems. Our Metric Hose
Fitting are widely trusted by distributors, assembly manufacturers, and OEMs
globally.
