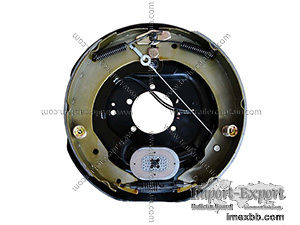

12" x 2" Trailer Self-Adjusting Electric Brake Assembly

√

Self-Adjustment

√

trail , er axle parts

√

Nev-R-Adjust

√

trailer axle brakes

√

6000 lbs trailer axle

√

trailer brake parts



Self-adjusting 12" trailer drum brakes is a very nice design for trailer
brake system. Al-KO call it Nev-R-Adjust. With the fine-tooth adjuster,
with the adjuster cable, self adjusting electric brake assembly will adjust
the distance between brake lining and trailer brake kit drum.



Features

l 12 inch electric brake assembly is easy to install and control.

l 12 inch x 2 inch trailer electric backing plate is electrophoretic-
coated.

l Needs only an electric brake controller to work.

l No need manual adjustment.

l Self-adjusting 12 inch trailer brakes can work with most electric brake
trailer axle 6000 lbs including Dexter, Hayes and many others.

Specifications

Ø Dimension: 12 inch x 2inch

Ø Axle Capability: 6000 lbs Axle

Ø Mounting Flange Bolt Pattern: 5 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

Ø 12” x 2" Brake Shoe Set x 1

Ø E-coat Backing Plate x 1

Ø Black/white wire Magnet x 1

Ø Magnet Lever x 1

Ø Adjust cable x 1

Ø Springs x 2

Ø Adjuster x 1

Minimum Order: 300 pieces
