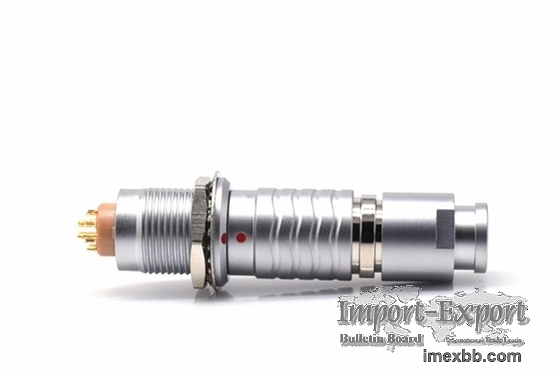

12 Pin Lemo Circular Cable Connectors Description:
12pin circular FGG cable connector totally compatible with Lemo
Good quality with endurance 5000 mating cycles
Push pull self-locking, very security systems and easy for mating and unmating
2B size, 00B,0B,1B,3B,4B also have made
Sodering type and PCB printed circuit available
Key: 1 key fixing G, 0 degree
IP50 dust-proof
Cable & Connector custom is welcomed!
12 Pin Lemo Circular Cable Connectors Specifications:

Shell Style/Model FG*: Straight plug, cable collet
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated [SAE AMS 2460]) shell and collet nut,
nickel plated brass latch sleeve and mid pieces
Configuration 2B.312 : 12 Low Voltage
Rated Current 7A
Contact Type Solder
R (max) 6.1 mOhm
Vtest (contact-shell) 1350 V (AC), 1910 V (DC)
Endurance (Shell) 5000
Temp (min / max) -55°C / +250°C

Why choose Ebuddy
Complete compatible with lemo/odu/fischer/hirose connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first
12 Pin Lemo Circular Cable Connectors Size and Drawing:

12pin Circular Cable Connectors Lemo Replacement 2B Size M15 Connectors 0

Advantage Of Circular Cable Connectors

● good performance: use standard super five pure copper four stranded double wire
and crystal head

● easy connection: no welding work, no installation tools, the standard crystal
head can be directly inserted, can achieve rapid installation and use.

● waterproof and dustproof meet the requirements of IP67 standard.

● threaded connection, safe and reliable, impact, vibration, tensile

● anti-electromagnetic interference protection

●since the plug and socket do not need to break or interrupt any of the original
wiring structure, there is no signal attenuation.

● miniaturization, saving installation space features

● convert existing Ethernet connectors into dust-proof, waterproof, fast
connection/separation, and efficient cable assembly for normal operation and use in
harsh environments.
