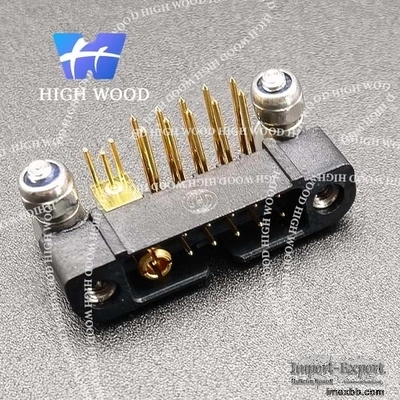

HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch.

PRODUCT DESCRIPTION
HW-221V20F26-0100-1400:

The CMM has been developed for the aerospace,avionics,instrumentation &
control,defence and transportation markets,with applications that induce
IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting
systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also
used engine controls.It is also used in a growing number of medical,and telecom
applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch
connector (square matrix) witch proven high.

Part numbering:

HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 0

nn=number of LF contacts

Type L
Y 3
YL 4.5
Calculation:

A=nn-2
B=A+7
C=A+ , 12
Refer to dimension table on cover page

FIXING HARDWARE FOR CMM 220 FEMALE:

FIXING HARDWARE FOR CMM 220 MALE

REFERENCE ASSEMBLY ON PCB OVERLL DIMENSIONS RECOMMENDATION
F21 HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 1Straight on PCB HW-
CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 2
F21 :

CMM male :

Y-YL-T-S-C

(D-E :straight)

HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 3F22 Straight on PCB
0.8min/2maxHW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 4 HW-CMM
Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 5
F22 :CMM male :

Y-T-S-C

(D-E :straight)

F22H :CMM male :

Y-T

(D :straight)

HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 6F22H
HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 7F24
Straight on PCB 1.5min/4max

F26

HW-CMM Connector, HW-221V20F26-0100-1400CMM,2mm Pitch. 8
F26/F23:

CMM male :

V-VL-R-S-C-E

(D :90°)

MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):

Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E
body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by
AF8
AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A × 1,1mm
1,65
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A × 1,35mm
1,85
mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × × 1,7mm
6,2mm 6,7mm 6mm OK OK
3315 30-3315 15A × 2mm
6,2mm 6,7mm 6mm OK OK
3320 30-3320 20A × 2,6mm
6,2mm 6,7mm 5,3mm OK OK

Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E
body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by
AF8
AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A × 1,1mm
1,65

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A × 1,35mm
1,85

mm

6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × × 1,7mm
6,2mm 6,7mm 6mm OK OK
3315 30-3315 15A × 2mm
6,2mm 6,7mm 6mm OK OK
3320 30-3320 20A × 2,6mm
6,2mm 6,7mm 5,3mm OK OK

CMM 220 SERIES in male & female styles for HF/HP contacts:

CMM 220

Male & Female

Special

contacts only

Special contacts number 2 3 4 5 6 7 8 9
10 11 12 13 14 15
Distance between

axis

A 4 8 12 16 20 24 28 32 36 40
44 48 52 56
B 13 17 21 25 29 33 37 41 45 49
53 57 61 65
Length in mm C 18 22 26 30 34 38 42 46
50 54 58 62 66 70
