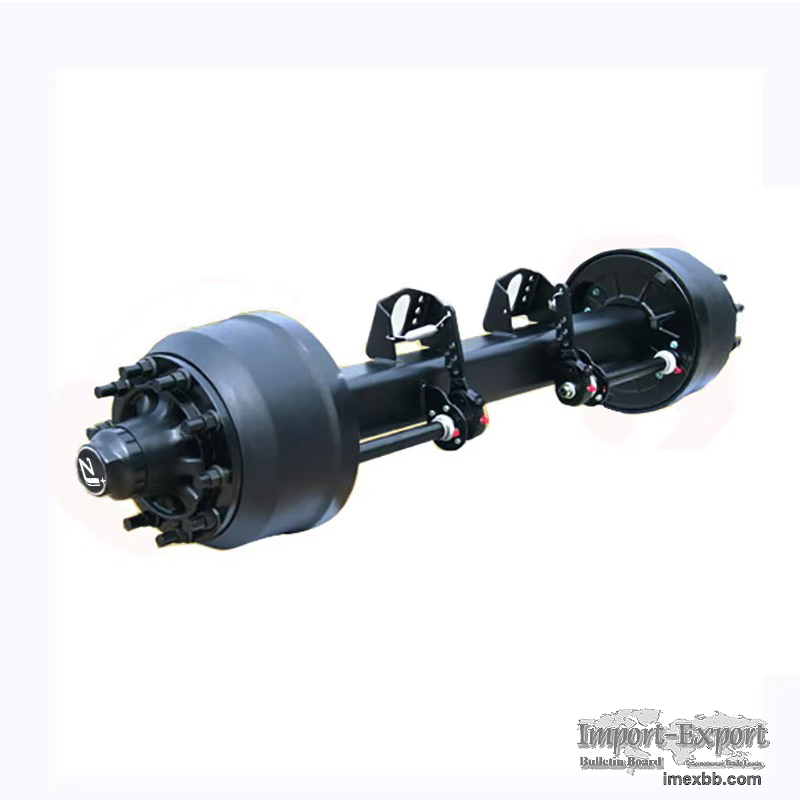

12T 14T 16T Heavy Duty Germany Drum Type Axles for Semi Trailers

QC management system Implementing IATF 16949:2016
Services quality management system Implementing ISO 9001:2015
Product technical standard Implementing JT/T 475-2020
Fatigue life 1,700,000 cycles
Raw material for beams 20Mn2 seamless steel tube from China's top 3 steel
mills
Axle beam Spinning forming
Intermediate frequency quenching
Tempering
Better load capacity & service life
Beam machining Using a special Double-head CNC Lathe, both ends of the beam
are processed at the same time, and the axle coaxiality is guaranteed;

Medium frequency quenching is used at the bearing mounting position to obtain
strong fatigue resistance;
​​​​​​​
The bearing mounting position is processed by Fine Grinding Process to meet the
high dimensional accuracy requirements of the designed axle;
​​​​​​​
The brake base plate welded on the axle is bored with a special Six Hole Boring
Machine to ensure that the parallelism of the six holes meets the design
requirements of the axle.
One-piece beams  Using high-quality low alloy steel and double-head
extrusion process to obtain high loading capacity, long service life, light
weight and remarkable performances.
