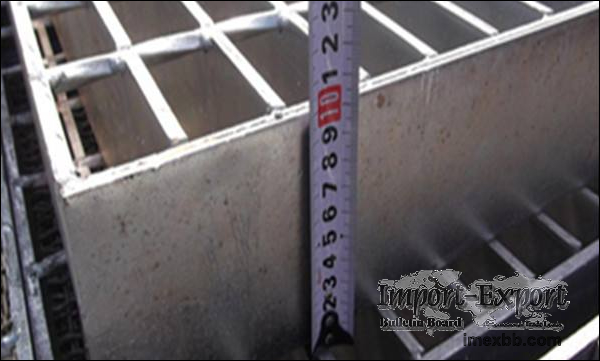

Heavy Duty Steel Bar Grating

Heavy duty steel gratings are economical flooring solutions having excellent
load capability and a slip-resistance surface. The Heavy Duty style grating
sheet handles a heavier load than other steel grating, with added angle
noising, it provides additional support along the back edge of the tread to
provide superior strength.

Floor grating - heavy duty, common specs as following:
The load bearing bars are produced from steel which conforms to the following
equivalent standards: AS3679 Grade 250, BS4360 Grade 43A and ASTM A36 or
equivalent.
Serrated surface (serrated bar), banded with the same size flat bar (end
banding type), hot dip galvanized.
The minimum average hot dip galvanized coating required by standards AS1650,
BS729 and ASTM A123 is 610gms/sq metre (the minimum average thickness of
galvanized coating must be 87.14 micron).

Width: 600 mm / 900 mm / 1200mm
Length: 1000mm - 1800 mm
