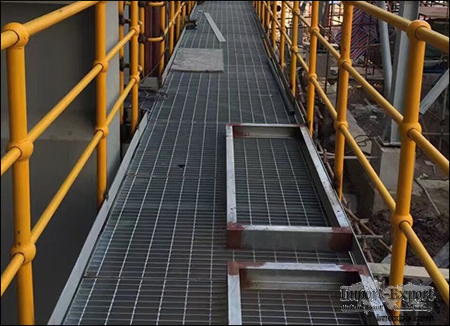

Plain Type Steel Grating

Plain steel bar grating is one of the most widely used gratings, available for
structure platform, flooring, kilns, sidewalk, dranage pit cover, stair treads.

Plain steel grating types:
Welded plain steel grating
Swage-locked plain steel grating
Press-locked plain steel grating

Features:
a) Type of bearing bar: 20 x 3 - 100 x 6
b) Pitch of bearing bar: 12. We
can design and manufacture standard steel grating, with a width of up to 1
meter
and in customized shapes per client requirements.5, 25, 15, 30, 34.3, 60, 40,
etc.
c) Pitch of cross bar: 38, 76, 50, 100, etc.
d) Material: mild steel or stainless steel
e) Finish: hot dip galvanizing, painted, untreated
f) Steel grating standards:
1) China: YB / T4001 - 1998
2) USA: ANSI / NAAMM (MBG531 - )
3) UK: BS4592 - 1987
4) Australia: AS1657 - 1985
