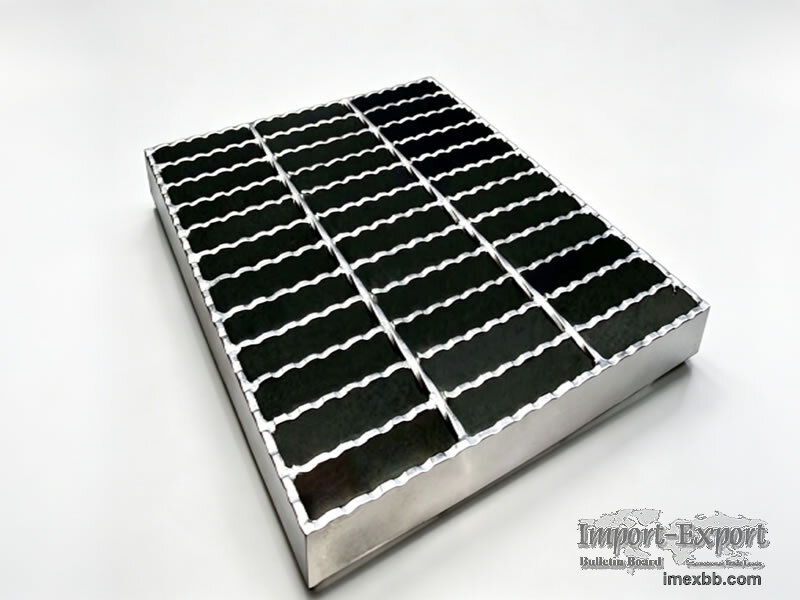

Steel Grating

Hebei Yuanhang Traffic Facilities Co., Ltd. offers steel grating manufactured
by welding load-bearing flat bars and cross bars at fixed spacing to create an
integrated structure. Steel grating is a metal flooring product used for
industrial platforms, walkways, stair treads, drainage covers, and construction
applications. Available in carbon steel and stainless steel materials, it
includes plain, serrated, and I-bar types with various specifications for
different load requirements. Custom sizes and finishes are available for
industrial projects.
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Steel Grating Bearing Bar Types
Plain Flat Bar: Smooth surface bars for general walkways.
Serrated Flat Bar: Toothed surface bars improve slip resistance.
I-Shaped Bar: I-section bars reduce weight and maintain strength.
T-Shaped Bar: T-section bars provide balanced load support.
Rectangular Bar: Solid rectangular bars for heavy-duty applications.
Hollow Bar: Lightweight hollow bars for reduced structural weight.
Trapezoidal Bar: Angled bars improve drainage and load performance.
Curved Bar: Custom curved bars for special structural designs.
Anti-Slip Bar: Enhanced surface bars for safety applications.
Stainless Steel Bar: Corrosion-resistant bars for harsh environments.
Aluminum Bar: Lightweight bars for corrosion-resistant structures.
Galvanized Steel Bar: Zinc-coated bars for outdoor protection.
Flat Bar Specifications:
Material: Q235A carbon steel or stainless steel.
Types: Plain flat bar, serrated anti-slip bar, and I-bar profiles.
Common Sizes: 20×5, 25×5, 25×3, 32×5, 40×5, 40×3, 50×5, 65×5, 75×6,
100×8, 100×10 mm.
Cross Bar Specifications:
Material: Q235A steel or SS304 stainless steel.
Types: Round bar, twisted square bar, square bar, and hexagonal bar.
Twisted Square Bar Sizes: 5×5, 6×6, and 8×8 mm.
Platform Steel Grating Specifications
30 mm Flat Bar Spacing: The most commonly used steel grating type for
industrial applications.
40 mm Flat Bar Spacing: The most economical and lightweight steel grating
option.
60 mm Flat Bar Spacing: Developed for mining applications with 50 mm cross bar
spacing.
Material Standard: Flat bars and cross bars are made from Q235 steel according
to GB/T700.
Flat Bar Material: Uses hot-rolled flat steel or slit hot/cold rolled steel
strips.
Flat Bar Tolerance: Dimensions meet YB/T4001.1-2007 standard requirements.
Serrated Flat Bar: Made from hot-rolled or punched steel strips with minimum 5
teeth per 100 mm.
I-Shaped Flat Bar: Available with different section sizes and moment of inertia
specifications.
Platform Steel Grating Features
Edge Banding: Can be welded with toe plates, checkered plates, and protective
panels.
Edge Frame Options: Available with flat bars, angle steel, channel steel, or
square tubes.
Installation Accessories: Handles and hinges can be installed for movable
platforms.
Steel Grating Welding Standard:
Edge welding follows series 1, series 2, and series 3 standards.

Welding Spacing:
Series 1: Every 5 bearing bars welded.
Series 2: Every 4 bearing bars welded.
Series 3: Every 3 bearing bars welded.
Weld Size: Single-side fillet welds are ≥3 mm with 20 mm weld length.
Steel Grating Applications
Industrial Platforms: Used for industrial flooring systems.
Walkway Flooring: Provides safe access pathways.
Trench Covers: Used for drainage channels.
Stair Treads: Applied to industrial stairs.
Bridge Walkways: Suitable for crossing structures.
Drainage Covers: Supports water drainage systems.
Manhole Covers: Used for utility access points.
Petrochemical Plants: Applied in chemical facilities.
Power Stations: Used in energy facilities.
Water Treatment Plants: Suitable for treatment systems.
Sewage Facilities: Used in wastewater projects.
Municipal Projects: Applied in public infrastructure.
Environmental Engineering: Used for engineering applications.
