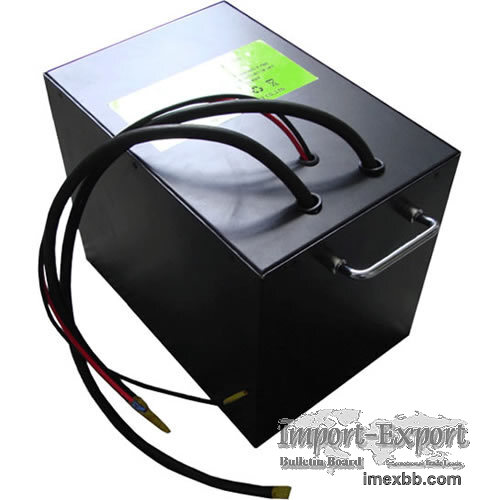

12V 100Ah LiFePO4 Battery Pack Perfect 12 Volt for Marine Environment Elect

12V 100Ah LiFePO4 Battery Pack Perfect 12 Volt for Marine Environment
Electric Boat 12 Volt 100AH LiFePO4 Battery batterie lithium 12v 100ah
specification:

No.

Item

G , eneral Parameter

Remark

1

Rated Capacity

100.0Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

95.0Ah

3

Nominal Voltage

12.8V


4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

Charge: CC 0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5℃

Carry out 2000cycles

5

Discharge cut-off voltage

10.0V

10.0V( recommended)

6

Charging cut-off voltage

14.8V

14.6V (recommended)

7

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V
charge till charge current decline to ≤0.05C

Charge time : Approx 7h

8

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V


9

Maximum Charge Current

100A


10

Continuous Discharge Current

200A

Over current 100±5A 9mS

11

Operation Temperature Range
Charge: 5~45℃
60±25%R.H.
12
Discharge: -10~60℃
13
Storage Temperature Range
Less than 1 year : 0~25℃
60±25%R.H.
at the shipment state

Less than 3 months:-5~35℃

14

Weight

Approx: 6.1Kg
15

Max.Dimension
Height:182mmWi , dth: 130mmLength: 195mm
12V 100Ah LiFePO4 Battery Pack Perfect 12 Volt for Marine Environment
Electric Boat 12 Volt 100AH LiFePO4 Battery batterie lithium 12v 100ah
feature:
Environmental friendly.
High density of energy.
Light weight.
Low self-discharge.
Low internal resistance.
Long cycle life, chargeable up to 1000 times.
No memory effect.
No fire, No explosion, No leakage

Minimum Order: 1 packs
