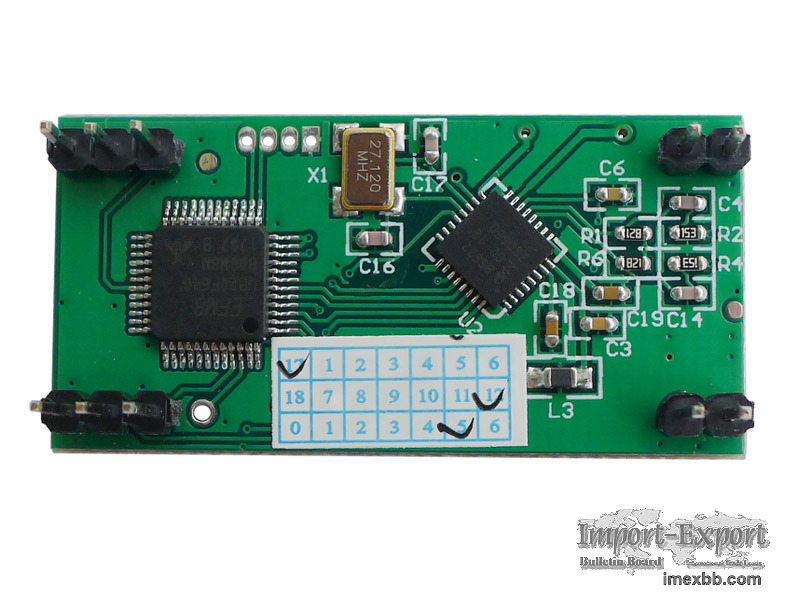

13.56MHz HF RFID Reader Module JMY5051

Description
JMY5051 is the second generation product based on JMY505 with UART and IIC
serial port. JMY5051 has various functions and supports multi ISO/IEC standard
of contactless card. The RF protocol is complex. The designer combined some
frequent used command of RF card and then user could operate the cards with
full function by sending simple command to the module.
The impedance between RF module and antenna was tuned by impedance analyzer.
And then the module has excellent performance and stability.
The module and antenna is split design. They are connecting by a 50ohm coaxial
wire whose length is up to 1000cm in good situation. But the best length of the
coaxial line is 60cm.
Qualifications
• PCD model: NXP CL RC663
• Working frequency: 13.56MHz
• Anti collision ability: Full function anti collision; be able to process
multi-cards; be able to set operate single card only.
• Auto detecting card: Supported, default OFF. The default state can be set.
• Power supply: DC 5V (±0.5V)
• Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
• Communication rate:
IIC: Max.200Kbps
UART: 19200bps / 9600bps / 38400bps / 57600bps / 115200bps
• Max.command length:
JCP02 252 Bytes;
JCP03 510 Bytes;
JCP04 253 Bytes;
JCP05 510 Bytes;
• Interface level: 3.3V (TTL level; 5V tolerance)
• Power consumption: 130mA
• Operating distance: 100mm (depending on card and antenna design)
• Dimension: 21 mm*42mm
• Weight: About 15g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• ISP: Supported
• RoHS: Compliant
