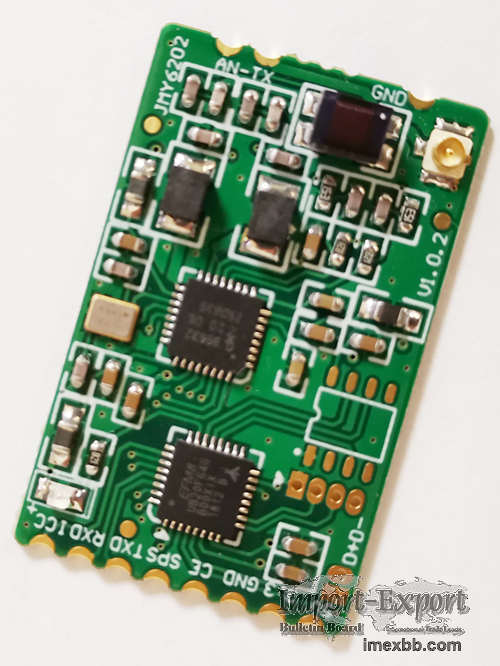

13.56MHz HF RFID Reader Module JMY6202

Description
JMY6202 is a series of RFID read/write module with UART, USB HID and IIC
communication port. It has various functions and supports multi ISO/IEC
standard of contactless card. The RF protocol is complex, but the designer
combined some frequent used command of RF card and then user could operate the
cards with full function by sending simple command to the module.
The module and antenna is split. The impedance between RF circuit and antenna
was tuned by impedance analyzer, and then the module has excellent performance
and stability.
It connects outside antenna by 50ohm coaxial cable. The surface mount and very
small module size are fit to portable devices.
Main Characteristics
• Module split antenna, connected by 50ohm coaxial cable, flexible antenna size
and layout
• EMV2010 certification ability
• Surface mount and very small module size to fit portable devices
• Low power consumption, could be set RF output level
• Good Performance in EMC
Qualifications
• PCD type: NXP CL RC663
• Working frequency: 13.56MHz
• RF standard: ISO14443A,ISO14443B,ISO15693
• Card supported: see: module function configuration table
• Anti collision ability: Full function anti collision; be able to set multi-
cards or single card
• Auto detecting card: Supported, default OFF, could be set
• Power supply: DC 5V (±10%)
• Interface: USB HID, IIC & UART (selected by SPS pin, recommend to use IIC)
• Communication speed:
IIC: 400Kbps
UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
USB: USB 2.0 HID
• Max. command length:
JCP04: 253bytes
JCP05: 510bytes
• Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)
• Power consumption:
Max.: 150mA
Idle model: 100uA
• Operating distance: 100mm (M1 typical distance, depending on card quality)
• Dimension: 20mm*35mm*4.1mm (without Antenna)
• Weight: About 10g (without Antenna)
• ISP: Supported
• RoHS:Supported
• Operating temperature: -25 to +85°C
• Storage temperature: -40 to +125°C

Minimum Order: 1 pieces

13.56MHz HF RFID Reader Module JMY6202
Enlarge Click to Enlarge
