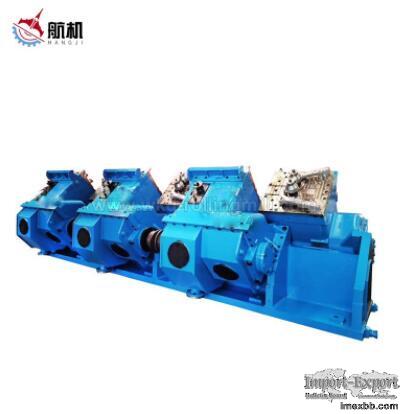

135M Finishing Mill Group

135M Finishing Mill Group
The finishing mill group is the extra-heavy top cross 45° high-speed wire rod
line designed for the high-speed wire-rod production line.

Product Description

The finishing mill group is located in the high-speed wire-rod workshop.
Rolling by 10 unit rack continuous micro-tension rolling mill , rolling the
∅17 ~ ∅21mm of rolled piece transported from upstream into ∅5.5 ~ ∅16mm
finished wire rod. The mill guaranteed exit speed is 90m/s. (When the
specification of finished product is ∅5.5mm)



1. Process parameters:

Incoming specifications: 17～21mm

Incoming material temperature: 850℃

Finished product specifications: 5.5～14mm

Rolled steel types: plain carbon steel, low alloy steel, high alloy steel,
high-quality carbon structural steel

Exit speed of the 10th aircraft: 90m/s.


finishing block mill Hangji performance

1．Technological parameter:

Incoming material Specification： ∅17～21mm

Incoming material temperature： >850℃

Finished product specification： ∅5.5～14mm

Rolled steel type：carbon steel, low alloy steel, high alloy steel, high-
quality carbon steel, structural steel.

Exit speed of the tenth rack：90m/s。

2．Equipment performance：

Mill form：Cantilever roller ring rolling mill

Rack quantity：10 stands(1~5 stands are ∅230 rolling mills,6~10 stands are
∅170 rolling mill)

Arrangement form：Top cross 45°,10 stands combined drive

Roller ring size：∅230 rolling mill：∅228.34~∅205×∅126×72mm; ∅170 rolling
mill：∅170.66~∅153.5×∅95×62mm;

Rolling force： ∅230rolling mill：152kN; ∅170rolling mill：107.8kN

Rolling torque： ∅230rolling mill：2.86kNm; ∅170rolling mill：1.61kNm

Driving motor： DC motor; Power：1600kW×3stand. or 5500 kWAc frequency
conversion motor. Revolving speed：700~1200 r/min; Working revolving speed：
900~1100r/min



The unit lubrication way：Thin oil lubrication; System oil pressure：0.35～
0.6MPa; Total consumption：1500L/min; Oils：Mobil 525; Cleanliness：10m

Roll cooling water： water pressure： 0.6MPa; Consumption：Maximum 10´30m3/h

Guard hydraulic system：Working pressure：20MPa; Systems flow：35 l/min

Mounted roller working pressure：Max 25MPa

Unload roller working pressure：Max 45MPa

Attachment：Unload roller tool(∅230) 1set; Mounted roller tool(∅230) 1set;
Unload roller tool(∅170) 1set; Mounted roller tool(∅170) 1set; Changing roller
hydraulic pump 1set

Unit composition ：∅230 rolling mill (5 stands), 170 rolling mill (5
stands),speed increasing box, large base, breakwater and capillary groove,
buffer tank, protective cover,couplings, pipes of finishing train etc.

Minimum Order: 1 sets
