1500℃ Bridgman furnace for polycrystalline ingots up to 25mm diameter

1500℃ Bridgman Furnace (for directional solidification of polycrystalline ingots)

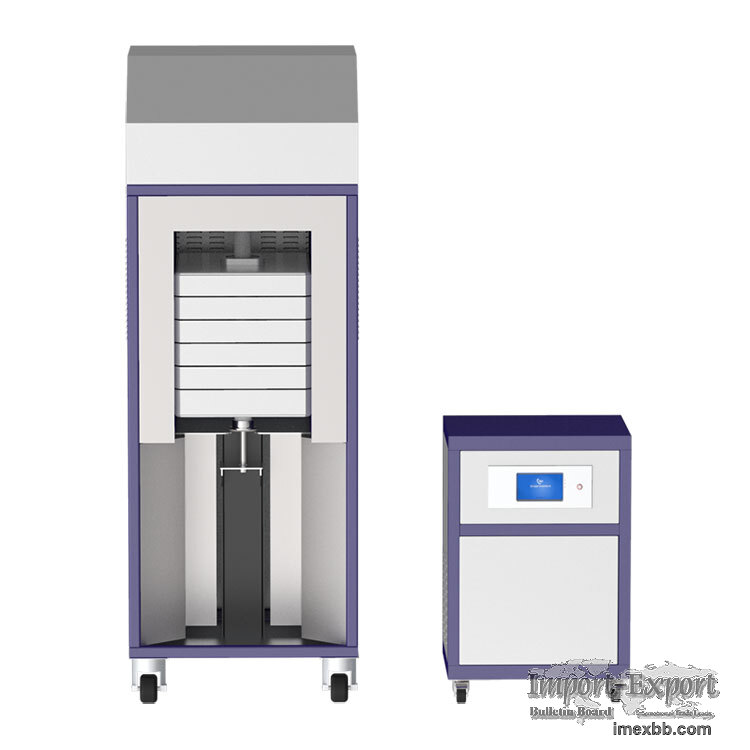

CYKY-BG1500 is a Bridgman furnace with the maximum temperature of 1500℃. It is
designed for the directional solidification of Polycrystalline Ingots up to 25mm
diameter. The heating module & cooling fan with adjustable speed is beneficial to
create a large temperature gradient at the interface of the molten / crystalline
state. An automatic crucible retrieving system enables the most convenient way for
sample loading/unloading. The optional crucible rotation stage can be added at
additional cost for single crystal ingot growth.

Main Features
● The single-heating zones heating module and two cooling fans with adjustable
speed can adjust the temperature gradient of the melt / crystal interface at
furnace exit
● Φ25mm alumina sample table with temperature test, which can accurately display
the temperature at the bottom of the crucible and measure the temperature
distribution in the furnace chamber.
● Electric lifting sample table is convenient for customers to load / retrieve
sample

Power Requirements
● Voltage: AC380V three-phase
● Power: 9.5KW

Working Temperature
● Max. working temperature: 1500 ℃
● Continuous heating temperature: 1450 ℃
● Heating element: silicon molybdenum rod

Furnace Tube & Flange
● Corundum tube: size φ40 x 1200 mm L
● Equipped with a set of stainless steel sealing flanges to ensure single crystal
growth under vacuum or inert atmosphere

Sample Stage
● Alumina sample table: Φ25 * 25mmH
● An S-type thermocouple is embedded in the bottom of the sample stage, which can
measure the temperature of the sample in real time

Heating Zones One heating zone, the total length of the heating zone is 240mm

Temperature Control System
● Use PID to adjust the temperature, can set 30 segments of heating and cooling
program
● With over-temperature and broken thermocouple protection
● Temperature accuracy: +/- 2℃.
● S-type thermocouple

Cooling Fan The speed adjustable cooling fans are installed at the bottom exit
of the furnace

Furnace Travel Distance & Speed
● As the furnace heater moves upward, the sample is moving downward relative to
the furnace heater.
● The maximum travel distance of the furnace heater is 200 mm.
● Travel speed: 0.03-3 mm/hr

Minimum Order: 1 sets
