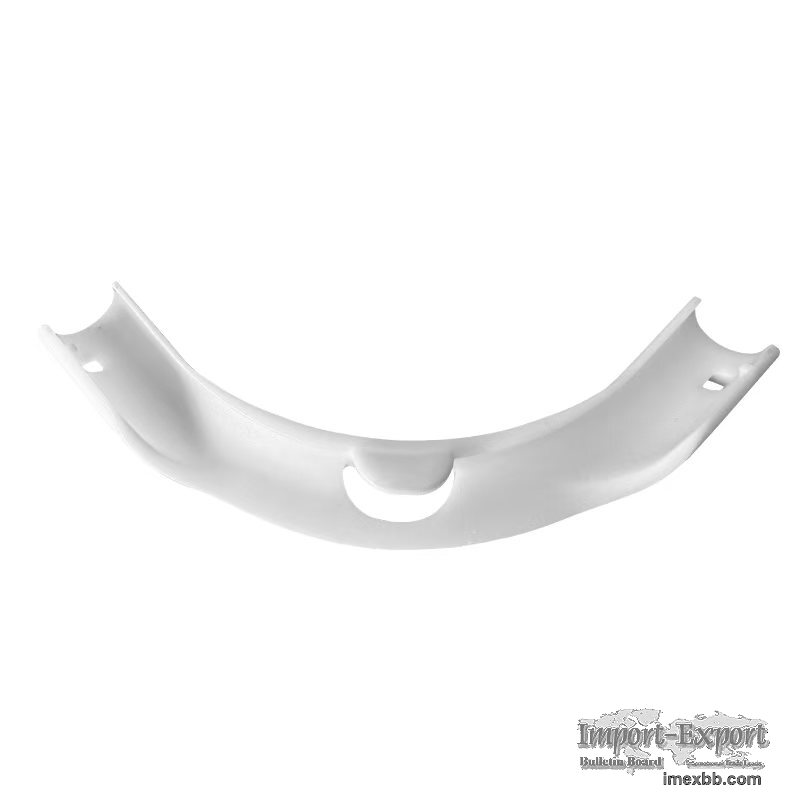

16mm Plastic Bend Support

Specifications
​Pipe Compatibility: 16mm OD polypropylene pipes (PPR, CPVC, PB)
​Bend Angle: 90° ±1° precision
​Color Options: Red, Blue, White (for easy identification)
​Dimensions: 250mm (L) × 80mm (W) × 30mm (H)
​Weight: 180g
16mm Plastic Bend Support Technical Performance
​Bending Strength: ≥25 MPa
​Tensile Elongation: ≥150%
​Operating Temperature Range: -20°C to 80°C (-4°F to 176°F)
Pipe bend support Key Features
Anti-Springback Locking System
Securely holds the bend angle without additional fasteners
Reduces labor time by eliminating post-bend adjustments
Uniform Stress Distribution
Thick-walled mold design prevents pipe flattening or kinking
Suitable for both rigid and flexible pipe types
Efficient Installation
One-handed operation with a ratchet handle
Completes each bend in ≤5 seconds
Applications
Underfloor heating manifold connections
Radiator supply/return pipe installations
Industrial piping systems requiring 90° directional changes
