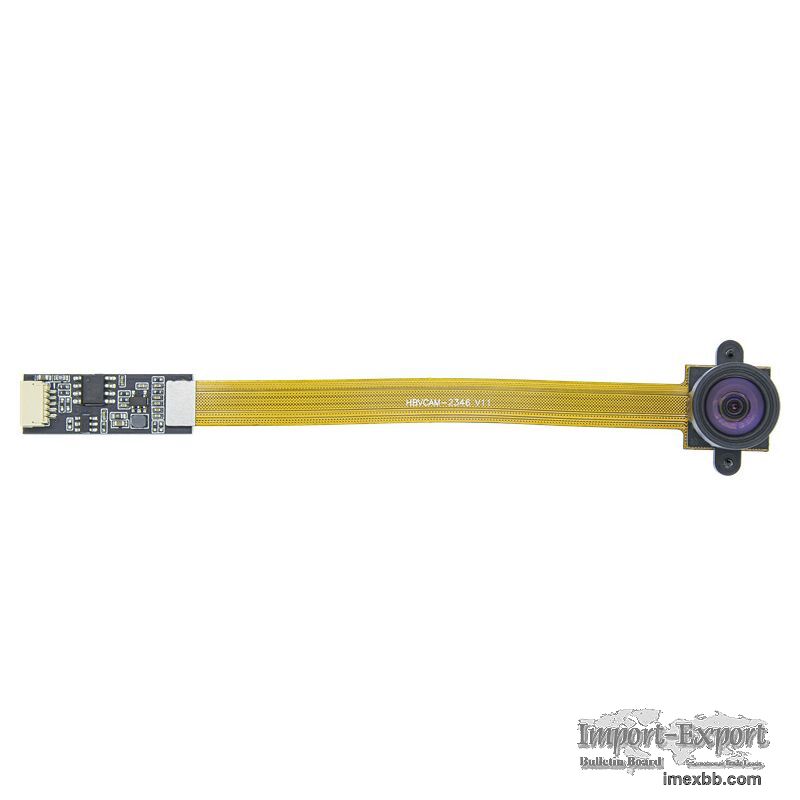

1MP 120FPS Global Shutter Full Color Camera Module

Flexible structure for separating soft and PCB boards, flexible installation
and FPC bendable
Head 17 * 17mm with 18 hole pitch screw hole positioning , FPC part can be
customized in length and shape
1MP 120FPS Global Shutter Full Color Camera Module
1. Product size: FPC board length 100mm
Height 15.2mm ± 0.5  PCB board: 28mm * 10mm
2. Product chip: OV9782 (1/4 '')
3. Maximum resolution, format, and frame rate: 1280 * 720 MJPEG 120FPS
4. Maximum viewing angle: 100 ° without distortion
5. Sample matching test line 5P-1.0MM-50CM
Specification:
Module No. HBVCAM-2346 V11
Module Size 123.5mm × 22mm × 15.2mm±0.5MM
Temperatur , e (Operation) -30°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-infinity
Resolution 600LW/PH (Center)
PCB printing ink Black
interface USB 2.0
Power suuply USB bus power
supply voltage DC 5V±5%
Maximum Power consumption 640 mW
Operating system request Win XP/win 7、8 / vista /android 4.0/ mac
/Linux with uvc
Sensor  OV9282 (1/4” )
Seneor Package CSP,Bare Die
Maximum resolution 1280*720
Sensitivity 1300mV /（lux-sec）
Pixel Size 3µm x 3µm
