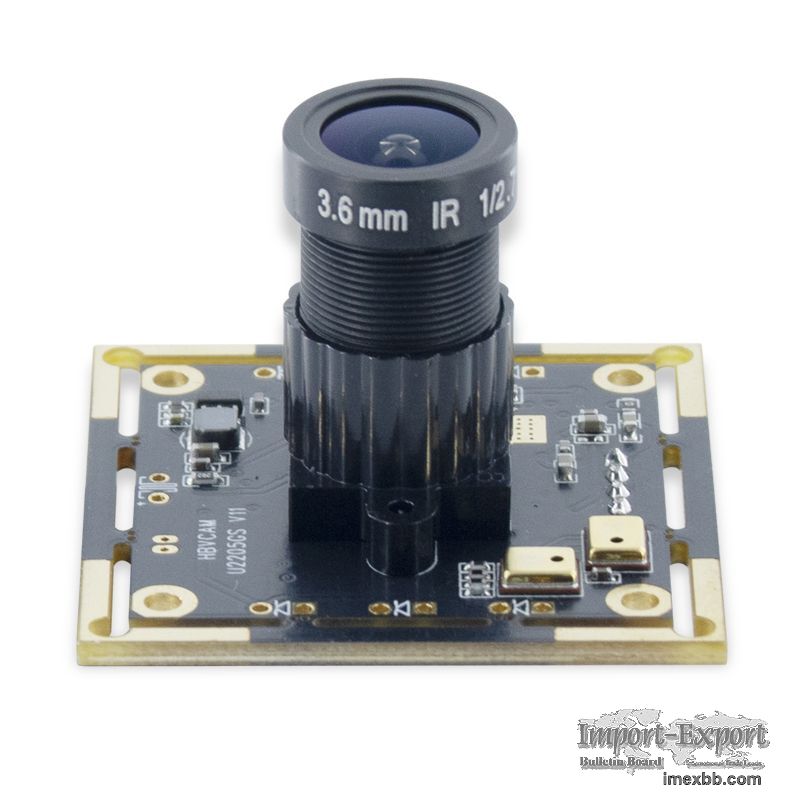

2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With Microp

1. Standard industrial camera 38*38mm& 32mm*32mm board structure
2. The chip can choose color or black and white images (OG02B10/OG02B1B)
3. Can add 6 plugins for welding white light - can be made into an on/off image
or photosensitive control - can be extended to the external frame light board
4. There is a reserved functional interface, which can customize software
functions such as triggering, pulse output input, etc. (additional charge for
customization)
5. Multi lens optional
2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With
Microphone
Specification:
Module No. HBVCAM-U2205GS V11
Module Size 38mm × 38mm × 18.00mm±0.5MM
Temperature (Operation) -30°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-infinity
Resolution 600LW/PH (Center)
PCB printing ink Black
interface USB 2.0
Power suuply USB bus power
supply voltage DC 5V±5%
Maximum Power consumption 890 mW
Operating system request Win XP/win 7、8 / vista /android 4.0/ mac
/Linux with uvc
Sensor OG02B10 (1/2.9” )
Seneor Package CSP,Bare Die
Maximum resolution 1600*1200
Sensitivity 1900mV /（lux-sec）
Pixel Size 3.0µm x 3.0µm
