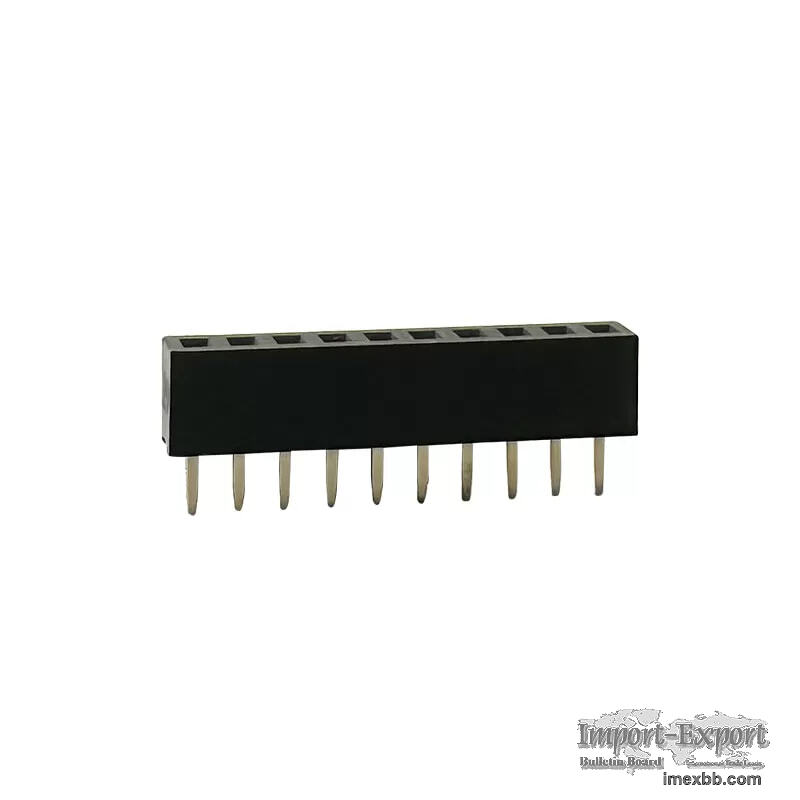

2.0mm Pitch Female Header Connector

Female header connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Female header connectors. Any
questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

Features
-Pitch: The pitch refers to the distance between adjacent pins or contacts. In
this case, it is 2.0mm, which is the standard spacing for this type of
connector.
-Number of Contacts: Female header connectors come in various configurations
with different numbers of contacts (pins). These can range from single-row
configurations with a few pins to dual-row configurations with many pins,
depending on the specific application requirements.
-Height: The height of 4.3mm specifies how much vertical space the connector
occupies on a PCB when soldered or mounted. This height provides adequate
clearance and mechanical stability for applications where slightly taller
connectors are needed.
-Connector Type: It is a female header connector, meaning it has receptacles or
sockets that accept male pins or headers. This configuration allows for easy
mating and unmating of connections, making it suitable for board-to-board or
board-to-wire applications.

Applications
1.Printed Circuit Board (PCB) Interconnections
2. Industrial Applications
3. Consumer Electronics
4.Telecommunications

Specifi , cations
2.0mm Pitch Female Header Connector Height  4.3mm
Order Information
RHTAY08B-4.3-1-XX-S-B
Height: 4.3mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin   R-Right Angle Pin   T-SMT Pin
Material:A=PBT  B=PA6T  C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
