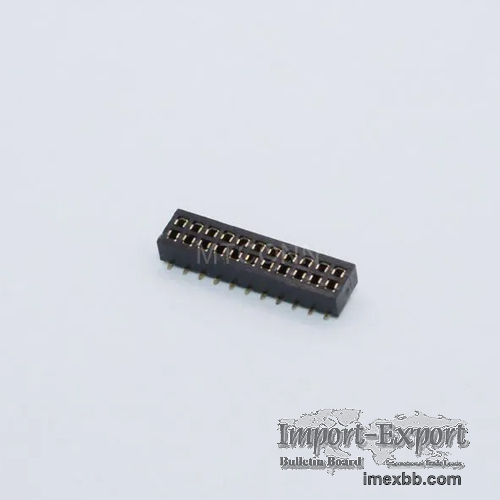

MTFH63-211GRB-11A36 11Pin PH1.27mm Vertical Dual Row Female Header

This dual-row vertical surface-mount (SMT) gold-plated header features a 1.27mm
pitch design with 11 pins per row (22 pins total), optimized for high-density
PCB applications. Utilizing phosphor bronze gold-plated terminals, it perfectly
matches corresponding pin headers and is suitable for industrial controls,
communication equipment, and consumer electronics.
Gold-plated phosphor bronze terminals: Contact resistance ≤20mΩ for stable
signal transmission.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ for enhanced
safety.
1.2mm low profile: Designed for compact devices.
180° mounting angle: Optimizes PCB space utilization.
UL94 V-0 flame-retardant housing: Black PA material ensures reliability.
Operating temperature: -40°C to +105°C for extreme environments.
