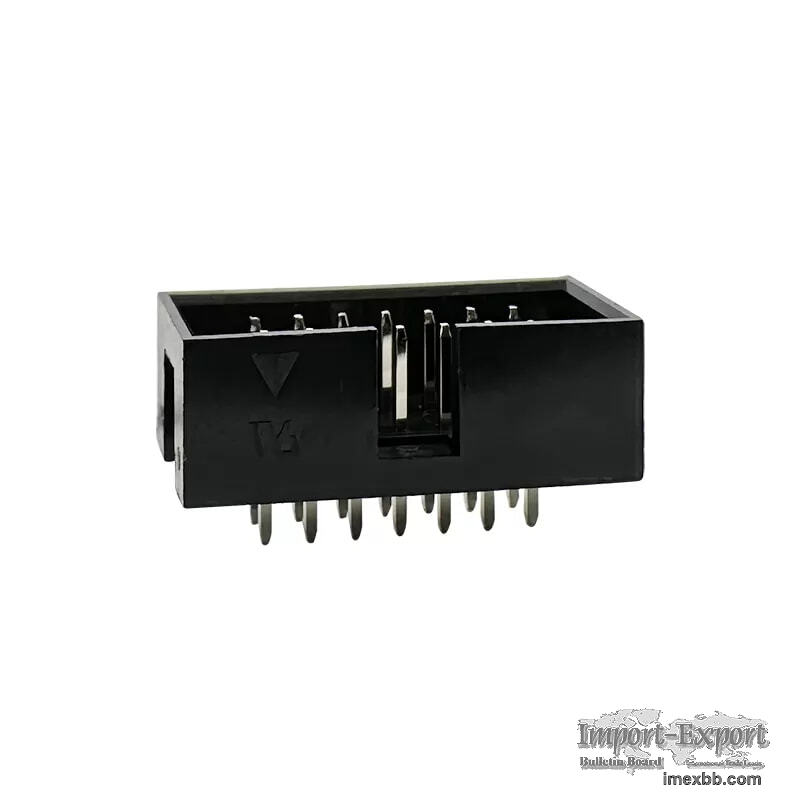

2.54mm Pitch Box Header Connector:RHTAYB02

Box header connectors & Ejector header connectors  is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of  Box header connectors & Ejector header
connectors. Any questions,Please contact our sales team to get any service
support.
If you need any samples,quick L/T, and etc, we will try our best to support.

Features
-Latch or Locking Mechanism: Some box header connectors may include a latch or
locking mechanism to secure the connector to the PCB, providing additional
mechanical stability.
-Housing Material: The connector housing is typically made from durable
thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon. These
materials provide mechanical strength and resistance to heat, chemicals, and
environmental factors.
-Current Rating and Voltage: Rated for specific current carrying capacities and
voltage levels, ensuring compatibility with the electrical requirements of
various applications.
-Connector Type: The box header connector is typically a male connector with a
rectangular plastic housing that houses multiple pins. These pins are designed
to be inserted into corresponding female connectors or sockets.

Applications
1.Computer Motherboards and Peripherals
2.Networking and Telecommunications Equipment
3.Consumer Electronics
4.Industrial Control Systems

Specifications
2.54mm Pitch Box Header Connector
Order Information
RHTAYB02-XX-S-B-口
XX-No.of  06~64pin
S-Straight pin  R-Right Angle Pin   T-SMT Pina
B-Black  G-Gray   L-Blue
Material: None=PBT   B=PA6T
Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
