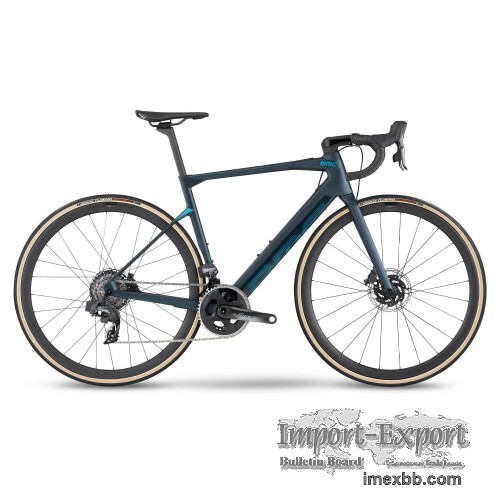

2023 BMC Roadmachine AMP ONE - www.calderacycle.com

2023 BMC ROADMACHINE AMP ONE SPECIFICATION
The Roadmachine AMP has hidden power thanks to Mahle's benchmark, ultra-
compact hub drive unit, which has a leading power-to-weight ratio. While it
looks, handles and performs like a Roadmachine, this e-road bike assists
you through the tough parts so you can achieve more. The internal battery
can be removed from the TCC Endurance Premium Carbon frameset, and there’s
a Premium Carbon D-Shape seatpost and ICS1 stem for day-long comfort. It’s
built to perform with SRAM’s Force eTap AXS 12-speed groupset, 35mm CRD-321
Carbon tubeless-ready wheels and 30mm tires.
FRAME Roadmachine AMP Premium Carbon with Tuned Compliance Concept
Endurance
Integrated Removable Battery
Internal Cable Routing
PF86 Bottom Bracket
Flat Mount Disc
12x142mm Thru-Axle
DRIVE UNIT Mahle X20
DRIVE UNIT CONTROL Mahle Head Unit
DISPLAY Mahle Head Unit
BATTERY PACK Mahle iX350 - 350 Wh (Optional 172 Wh Range Extender)
CHARGER Mahle X20 Active Charger
FORK Roadmachine AMP Premium Carbon with Tuned Compliance Concept
Endurance
Internal Cable Routing
Flat Mount Disc
12x100mm Thru-Axle
GEARS 2x12
CHAINWHEEL SRAM FORCE AXS 46-33T
CASSETTE SRAM FORCE XG-1270 10-36T
CHAIN SRAM FORCE 12 Speed
REAR DERAILLEUR SRAM FORCE eTap AXS
SHIFTERS SRAM FORCE eTap AXS HRD
BRAKES SRAM FORCE eTap AXS HRD - Centerline XR Rotors (160/160)
HANDLEBAR BMC RAB 02 - Ergo Top Shape - Compact Bend
STEM BMC ICS1
SEATPOST Roadmachine AMP Premium Carbon D-Shaped Seatpost
15mm Offset
SADDLE Fizik Taiga
HUBS CRD-321 - Ebikemotion
RIMS CRD-321 Carbon - Tubeless Ready - 35mm
TIRES Vittoria Rubino Pro - 30mm
TIRE CLEARANCE 33mm (Measured Width)

Minimum Order: 1 pieces
