2023 Cannondale Topstone Carbon 5 Bike - www.calderacycle.com

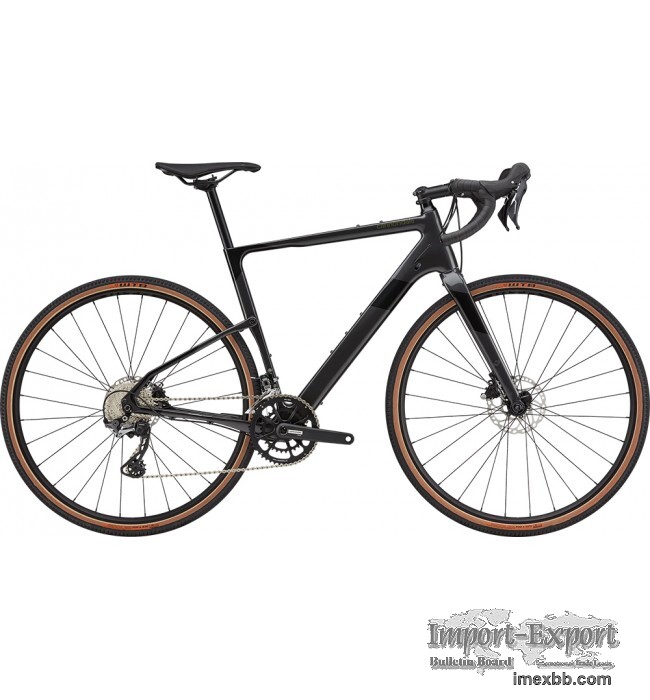

2023 Cannondale Topstone Carbon 5 Bike

A carbon frame gravel bike with high-end components and hydraulic disc
brakes.



SPECIFICATION

Fr , ame BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed
Release Thru-axle, dropper post compatible, direct line cable routing

BB Standard: BB30, Press Fit

Tire Clearance: 40c

Color: Graphite

Fork BallisTec Full Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset,
flat mount disc, internal routing, 12x100 speed release thru axle

Bottom Bracket Cannondale BB30

Headset Integrated, 1-1/8" - 1.5"

Stem Cannondale 3, 6061 Alloy, 31.8, 7°

Handlebar Cannondale 3, butted 6061 alloy, 16 deg flare drop

Saddle Fizik Aliante Delta, S-alloy rails

Seatpost Cannondale 3, 6061 Alloy, 27.2 x 350mm

Pedals Not included

Grips Cannondale Bar Tape, 3.5mm

Rims WTB ST i23 TCS, 28h, tubeless ready

Spokes Stainless Steel, 14g

Front Hub Formula cartridge bearing, Centerlock, 12x100mm

Rear Hub Formula cartridge bearing, Centerlock, 12x142mm

Tires WTB Riddler TCS Light, 700 x 37c, tubeless ready

Rear Derailleur Shimano GRX 812, Shadow RD+

Front Derailleur Shimano GRX 800, braze-on

Crank Cannondale, BB30a, OPI SpideRing, 46/30

Shifters Shimano GRX 600, 11-speed

Cassette Shimano 105, 11-34, 11-speed

Chain KMC X11, 11-speed

Brakes Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotor

Brake Levers Shimano GRX 600 hydraulic disc
