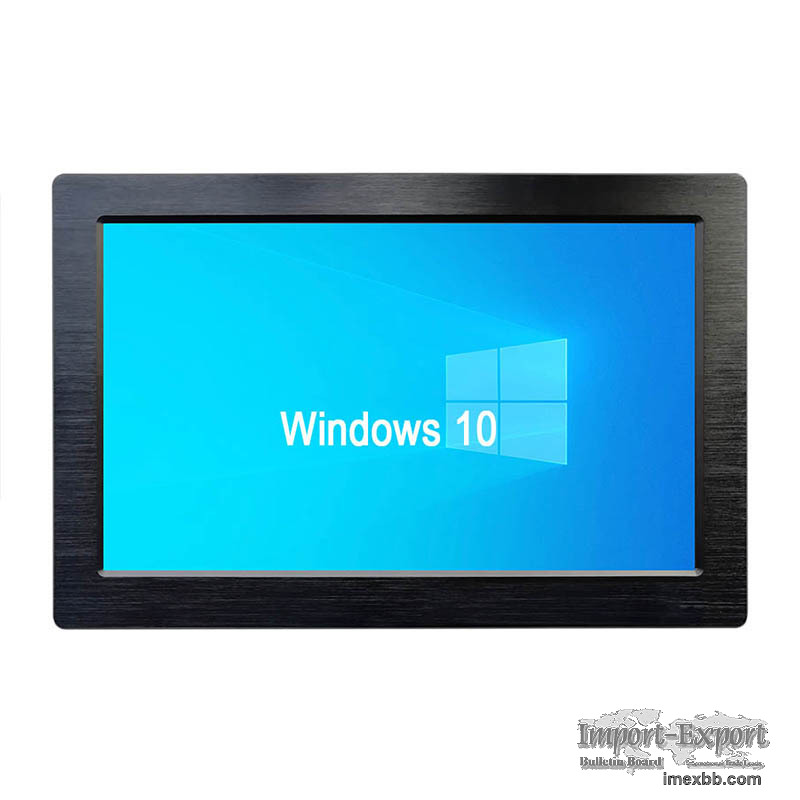

21.5 inch industrial panel widescreen monitor

IDM-215W is a 21.5 inch 1920 x 1080 LCD widescreen monitor, industrial
panel, HDMI/DVI/VGA. It offers flexible options for high brightness, power
input, video input, coating and mounting kit. Widely used into HMI, Kiosk,
Automation, M2M, heavy Manufacturing Equipment (CNC, machine tool etc.).

15" XGA TFT LCD Panel support 1024 x 768 pixels,250 cd/m2 brightness

6mm Aluminum bezel panel with touch screen/strengthen glass

Rugged construction and modularized design

VGA + HDMI or DVI + Audio Input signal(AV Optional)

2 x stereo speakers for industrial automation system voice output

OSD control keys to optimize the display

AC 100-240V wide range external ac adapter

NEMA4 / IP 65 compliant front panel

Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports
desktop stand / wall mount/ swing arm mount

Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC,
machine tool etc.)

Specifications
Display
Display Type 15" XGA TFT LCD

Resolution 1024 x 768

Max.color 16.2M

Luminance 250 cd/m2

View Angle 178°(H) , 160°(V)

Pixel Pitch 0.297 x 0.297 mm

Contrast Ratio 700:1

Response Time 5 ms

LCD MTBF 50,000hrs

Input Signals
RGB Signal D-SUB 15P Connector (female)

DC input DC Jack (2.1mm)

Video Input (option) RCA Connector

S-Video signal (option) S-Video (SVHS)plug

DVI-D Signal DVI-D input 24pin connector (female)

Touch screen RS232 (option) D-SUB 9p connector (female)

Touch screen USB (option) USB-A type connector (female)

Available Options
Touch screen Resistive Type with USB and RS232 controller

DC Power Input Wide Range 8~30v DC input

AV input Composite Video/Audio, S-Video Input

Power supply
Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter

DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental
Construct , ion Heavy duty steel and aluminum front panel

Operate temperature -10°C~ 60°C (-14~140°F)

Storage temperature -20°C ~ 70°C (-4 ~ 158°F)

Storage humidity 5% to 95% non-condensing

Anti-Vibration 17HZ-500 HZ 1G PTP

Anti-Shock 1G / peak( 11m sec)

Packing info
Dimensions (WxHxD) 375 x 300 x 42 mm

Weight Net: 6.0kg , Gross: 8.0 kg

Minimum Order: 2 pieces
