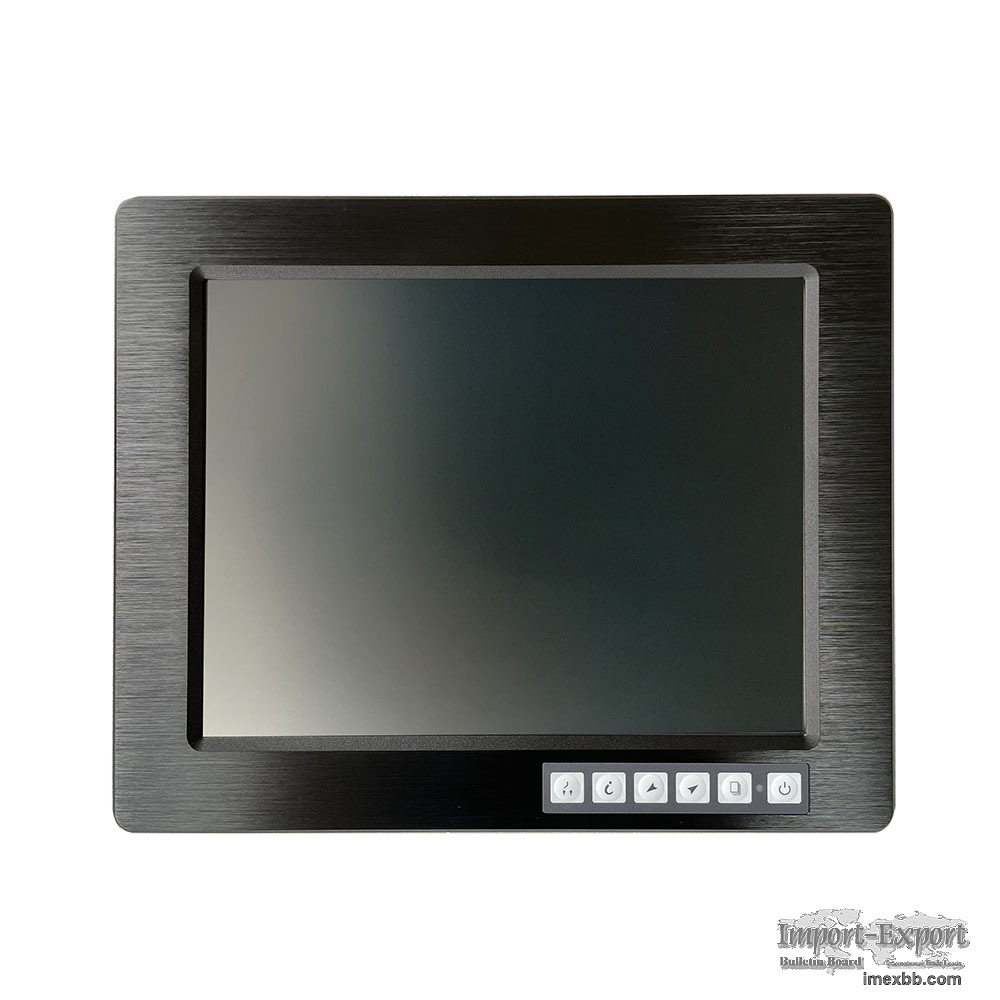

Industrial monitor with 12.1 inch 1024x768 widescreen 1280x800 panel

Industiral monitor IDM-12 is witha 12.1 inch LCD 800x600/ 1024x768 OR WIDE
SCREEN 1280x800 panel, HDMI/DVI and VGA, 6mm aluminum panel, IP65 level,8~32
inch panel/ rackmount
lcd and OEM are avaible.


Display Type 12.1" SXGA TFT LCD
Resolution 1024 x 768/ 800 x 600/ 1280 x 800
Max.color 16.7M
Luminance 450 cd/m2
View Angle 120°(H) , 100°(V)
Pixel Pitch 0.289x0.289 mm
Contrast Ratio 500:1
Response Time 8 ms
LCD MTBF 50,000hrs
Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply

Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Construct , ion Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info

Dimensions (WxHxD) 320 x 258.5 x 42 mm
Weight Net: 4.5kg , Gross:6.0 kg

Minimum Order: 2 pieces
