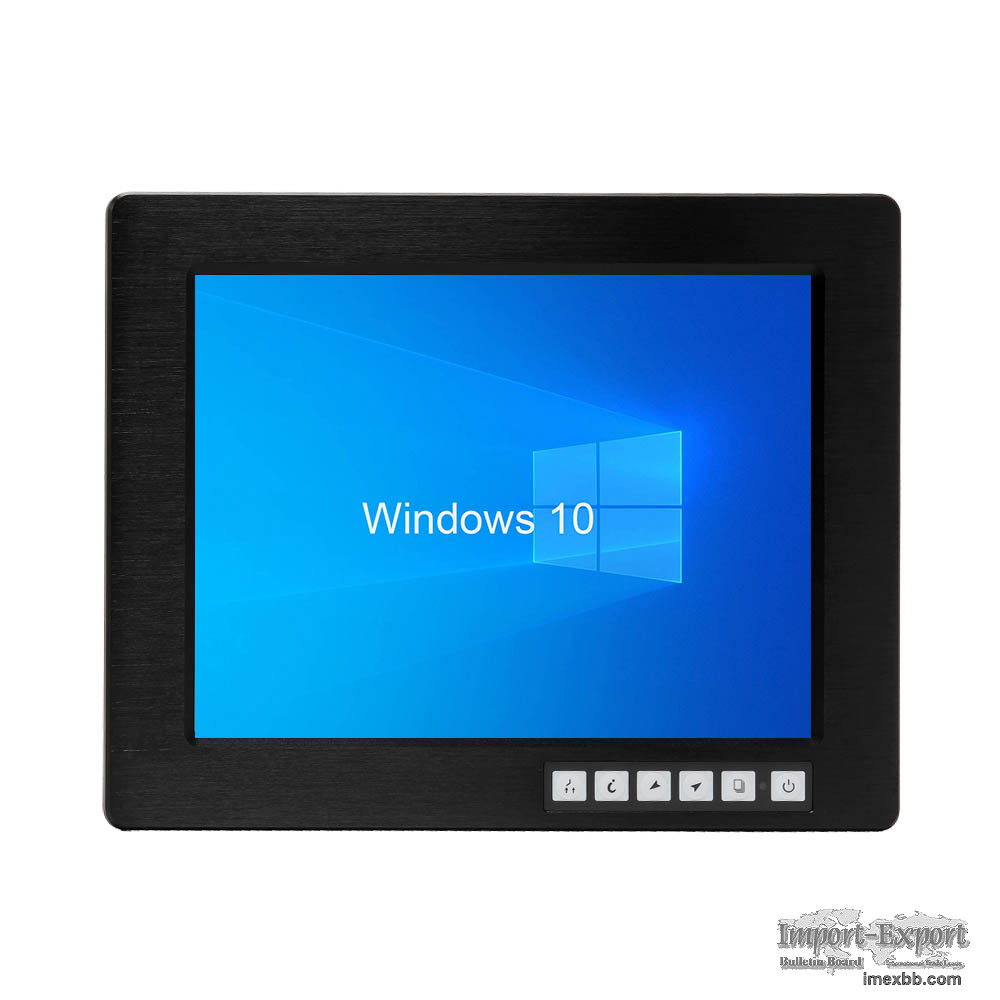

12.1 inch industrial monitor with HDMI VGA touchscreen

IDM-12 /IDM-12w is a high value Industrial panel monitor with a 12.1 inch
LCD 800X600/ 1024X768 OR WIDE SCREEN 1280X800) panel, HDMI/DVI and VGA,
touch screen or strengthen grass. 6mm aluminum panel, IP65 level, idealy use
into HMI, Kisok, Automation machine, M2M, Smart factory,heavy Manufacturing
Equipment, CNC, machine tool,HMI, Kiosk etc.S. 8~32 inch panel/ rackmount
lcd and OEM are avaible.

Features

12.1" XGA TFT LCD Panel support 1024x768 pixels,450 cd/m2 brightness
6mm Aluminum bezel panel with touch screen/strengthen glass
Rugged construction and modularized design
HDMI/DVI + VGA + Audio Input signal(AV Optional)
2 x stereo speakers for industrial automation system voice output
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
NEMA4 / IP 65 compliant front panel
Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm)
supports desktop stand / wall mount/ swing arm mount
Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC,
machine tool,HMI, Kiosk etc.
Specifications

Display

Displ , ay Type 12.1" SXGA TFT LCD
Resolution 1024 x 768/ 800 x 600/ 1204 x 800
Max.color 16.7M
Luminance 450 cd/m2
View Angle 120°(H) , 100°(V)
Pixel Pitch 0.289x0.289 mm
Contrast Ratio 500:1
Response Time 8 ms
LCD MTBF 50,000hrs
Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply

Standard 100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental

Construct , ion Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info

Dimensions (WxHxD) 320 x 258.5 x 42 mm
Weight Net: 4.5kg , Gross:6.0 kg

Minimum Order: 2 pieces
