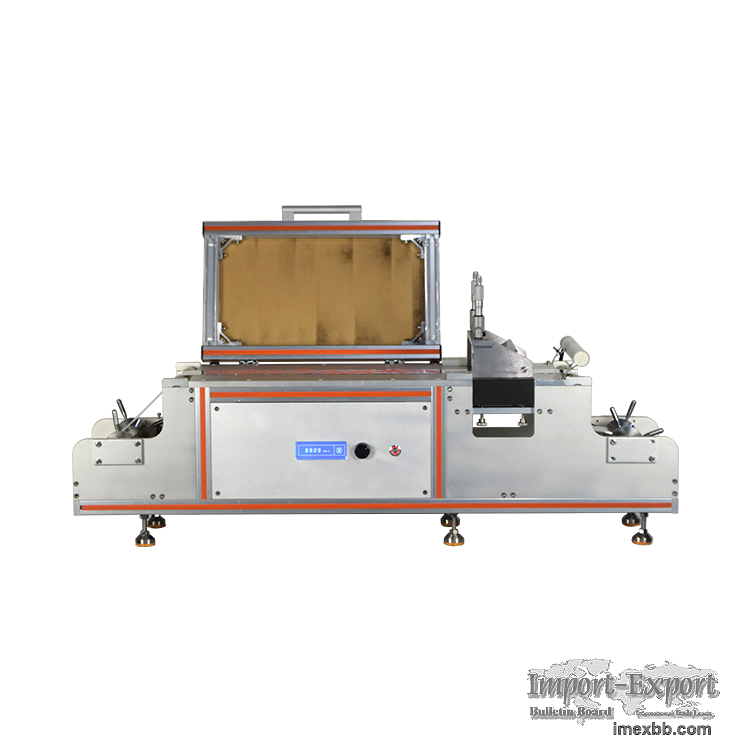

220mm wide roll to roll tape casting film coater for Li-ion

This model of roll to roll tape casting film coater is mainly used for coating
liquid or colloidal film in laboratory. The equipment adopts step-less variable
speed motor to precisely control the coating speed, so as to achieve the purpose of
uniformly rotating the roller to drive the aluminum foil or copper foil for
coating; the doctor-blade is made of all stainless steel, with constant weight,
which can improve the consistency and uniformity of the coating; the coating
platform is equipped with water cooling pipeline, which can be cooled by
circulating water, so that the substrate and film material can be maintained at a
low temperature;The rewinding and unwinding device adopts feedback adjustment,
which can automatically control the speed within ± 1 rpm, effectively ensuring the
uniformity of the coating film; the upper cover has the functions of dust
prevention and heat preservation, and makes the equipment more beautiful.

Technical parameter
1. Input power AC220V 50Hz
2. Total power 150W
3. Coating platform Material: aluminum Size: 500mm×300mm Embedded water
cooling pipeline
4. Reel diameter ≤160mm
5. Film thickness accuracy ±0.01mm
6. Coating speed 0~100mm/s
7. Doctor blade 220mm wide
8. Overall dimensions 1180 mm × 300 mm × 310 mm (close protective cover)
9. Net weight About 100kg
10. Water cooling interface φ8 quick plug connector

Minimum Order: 1 sets
