top UV roll to roll film coater by tape casting for Li-ion

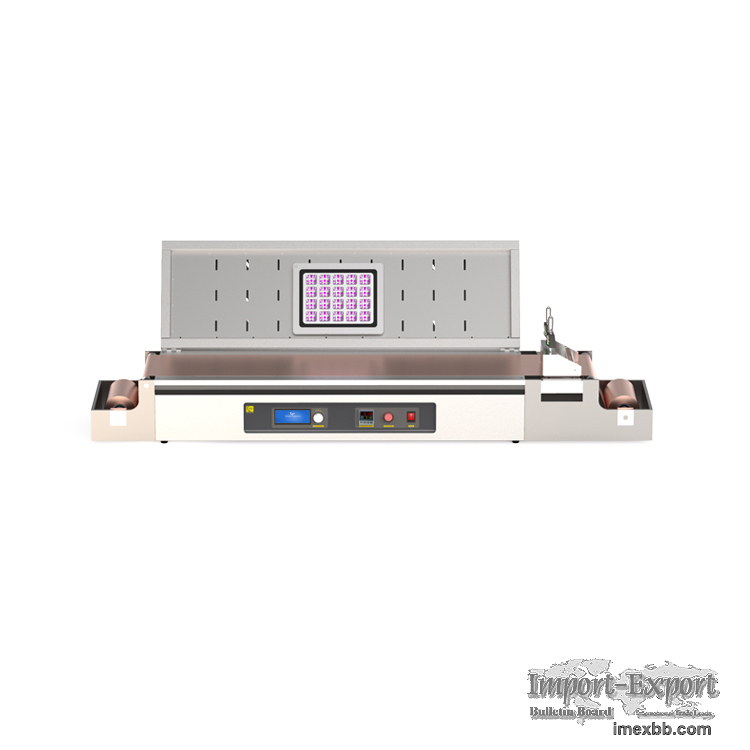

Roll to Roll film coating machine CY-AFC360R-HTUV
This small automatic drying film coating machine is mainly used for coating liquid
or colloidal film in the laboratory. The equipment uses a continuously variable
motor to accurately control the coating film speed to achieve the purpose of
advancing the scraper at a uniform speed for coating. The scraper adopts All
stainless steel material has a constant weight, which can improve the consistency
and uniformity of the coating film. The equipment adopts the bottom vacuum to
absorb the sample, and has the bottom heating function, the heating temperature can
reach up to 120℃, and the function of baking the film is realized during the film
coating process, so that the film can be dried quickly.
At the same time, the equipment is equipped with a winding and unwinding device,
which can be used for continuous coating of copper foil or aluminum foil. The upper
cover is equipped with an ultraviolet curing lamp, which can be used for curing and
drying the film. This equipment is very suitable for continuous production of
battery electrode materials.

Technical parameters:
1. Input power AC220V, 60Hz
2. heating power 3000W
3. Total power 3100W
4. Coating vacuum chuck size 360mm x 200mm
5. Film thickness accuracy ±0.01mm
6. Film applicator 300 width
7. Rewinding and unwinding mechanism The speed of the rewinding and unwinding
mechanism is adjustable from 1 to 400mm/min, and the mechanism adopts feedback
adjustment, which can automatically correct the speed deviation
8. Heating temperature ≤120℃
9. Top UV Wavelength 365nm
10. Temperature accuracy ±1℃
11. Overall size 1245mm x 500mm x 270mm (close the protective cover)
1245mm x 550mm x 670mm (open the protective cover);Net weight About 100kg
12. Mechanical pump FY-4C-N;Pumping rate 4m3/h;Exhaust interface φ8 quick
screw joint

Minimum Order: 1 sets
