23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire

Product Description
23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire



We are one of the pioneers in producing micro thin enameled wires below 0.03mm in
China. Our R & D team has 20 years of market experience.We have achieved the goal
of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is
0.011mm, and mass production has been achieved.When the displays return the
transformer industry, we are the No.1 Chinese brand with a share of cake.We rival
the internationally renowned enameled wire brands for production, technology, raw
materials.We surpass them in terms of "service, quick response"; 30% lower "price"
is our advantage. More and more well-known customers choose us as suppliers-
Philips, Bosch, Panasonic, Samsung ...





FEATURES AND BENEFITS

HIgh tensile strength. 25% higher than copper wire

Good bending strength

high conductivity. >93%IACS

Excellent solderability,

Excellent audio property.

23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire 0




Characteristics

Technical request

Test Results

Conclusion

Sample 1
Sample 2

Sample 3

1 Surface
Good

OK OK OK OK
2 Conductor diameter 0.600± 0.005 0.600 0.600 0.600 OK
0.005
3 Coating thickness ≥ 0.048 mm 0.0520 0.0530 0.0520 OK
4 Overall diameter ≤ 0.661 mm 0.6520 0.6530 0.6520 OK
5 Conductor resistance ≤ 0.0620 Ω/m 0.0616 0.0615 0.0617 OK
6 Elongation ≥ 28 % 31 30 31 OK
7 Breakdown voltage ≥ 4300 V 5682 5853 5858 OK
8 Pinhole test ≤ 3 faults/5m 0 0 0 OK
Remark:

Test Items

Technical Requests

Results

Conclusion:

, Approved

1
Adhesive

Coating layer is good

OK
2
Cut-through

200℃ 2mins no breakdown OK
3
Heat Shock

175±5℃/30min no crack OK
4
Solder Ability

390± 5℃ 2Sec Smooth OK
5
Solvent Resistanc

No blister, no expansion, no shed

OK

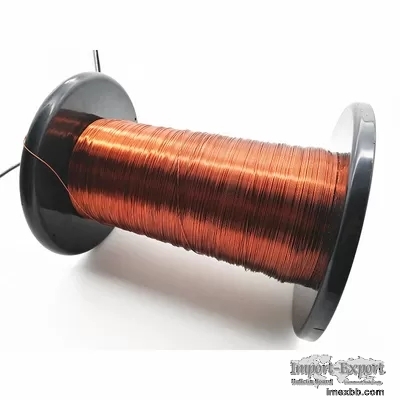

23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire
Enlarge Click to Enlarge
