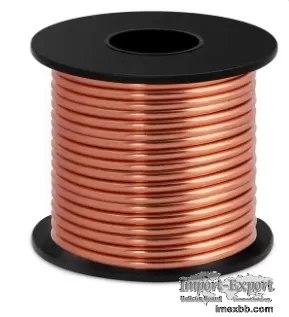

Enamelled Solid Bare Copper Wire 5mm for Conductive

Product Description
Item C11000 C10100 C10200 Copper Coil / Copper Strip
Standard JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN
1652-98,ASTM B171M-04,
Material
C12300,C1020P,C10100,C10400,C10700,C10200,T2,C , 1100P,C10500,M1, Cu-
ETP,TP1,C1201P,C11000,Cu-DLP,TP2,C1220P,C12 , 21P,C1200,C12200,
C14200,C23000P,H62,C2801P,C36500
Thickness 0.01mm~20mm
Width 1mm~2500mm
Length Random size and customize or as required
Surface mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as
required
Package Standard export seaworthy or as customers' requirements
Application Copper coil can be made to do all sorts of deep drawing and
bending stress components,such as manufacturing
pins,rivets,gasket,nuts,conduits,the barometer spring,screen,radiator parts,
etc
Export to
Ireland,Singapore,Indonesia,Ukraine,Saudi,Arab , ia,Spain,Canada,USA,Brazil,Tha
iland,
Iraq,Russia,Holland,Turkey,Kuwait,Korea,Argent , ina,India,Egypt,Oman,Malaysia,
Peru,Vietnam,Mex , ico,etc
Enamelled Solid Bare Copper Wire 5mm For Conductive
Industry-specific attributes
Cu (Min) ≥65%
Alloy Or Not Non-Alloy
Ultimate Strength (≥ MPa) 315
Other attributes
Place of Origin Shandong, China
Type Red Copper Wire
Application Conductive
Grade Brass,Copper
Brand Name jinshunlai
Model Number C11000 C12200 etc
Processing Service Bending, Decoiling, Welding, Punching, Cutting
Product name 99.9% Pure Copper Wire, Dead Soft copper wire rod C11000
Key word 12ga Copper Wire
MOQ 1ton
Grade C12000 C11000 C1100 C1202
PACKAGE Carton
PRICE TERM CIF CFR FOB EX-WORK
DELIVERY TIME 7-10 Days
Sample Avaliable
Diameter 0.3mm-12mm
Color Red Cppper
Packaging & delivery
Package Type: Standard Seaworthy Package,inside is kraft paper,water
plastic film is in the middle and outside is GI sheet to be covered by steel
strip with lockEnamelled Solid Bare Copper Wire 5mm for Conductive 0
Supply Ability
Supply Ability 10000 Ton/Tons per Month
Product details

Products Description
Product name
1 lb, 99.9% Pure Copper Wire, Dead Soft copper wire rod C11000 16ga copper
wire rod C27000 brass wire
Model Number
C11000, C10200, C12000, C12200 C26800 C27000 C35000 C38000 etc.
MOQ
100kg
Color
Red Cppper
Standard
B465 JISH3250-2006
Payment Term
30%TT Advance + 70% Balance
PRICE TERM
CIF CFR FOB EX-WORK
Coating
Double Layer or customized
Packing
Standard Seaworthy Package
DELIVERY TIME
7-20 Days
Hardness
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface
mill,polished,bright,o , iled,hair line,brush,mirror,sand blast,or as required



Application
1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications


The insulation or overcoating used on enameled round wire is a type of
polymer film (varnish) made from a variety of resins—typically polyester,
polyglass, or polyamide—to create a tough, continuous layer of protection
for the wire and allow for numerous windings in a coil without producing a
short circuit.


Various types of varnishes produce different characteristics or properties,
such as: High thermal index (AI) Abrasion resistance (NY) Self-bonding (SB)
Self-lubricating (SL) Enameled round wire meets temperature classes between
105 °C and 240 °C, providing a guaranteed service life of 20,000 hours at
the rated temperature. Magnet wire comes in a variety of sizes and shapes
such as rectangular, square, and round. Enameled wire with a thermoplastic
layer to bond the coils together is used to create self-supporting coils,
which eliminate the need for a bobbin and accommodate tight spaces in
various electronics applications.

The enameled copper wire is made of copper conductor and insulation
materials, the insulation materials mainly include UEW, PEW and AIW, the
temperature class 130℃, 155℃, 180℃, 200℃, 220℃ and 240℃. The color is
natural and beautiful.
