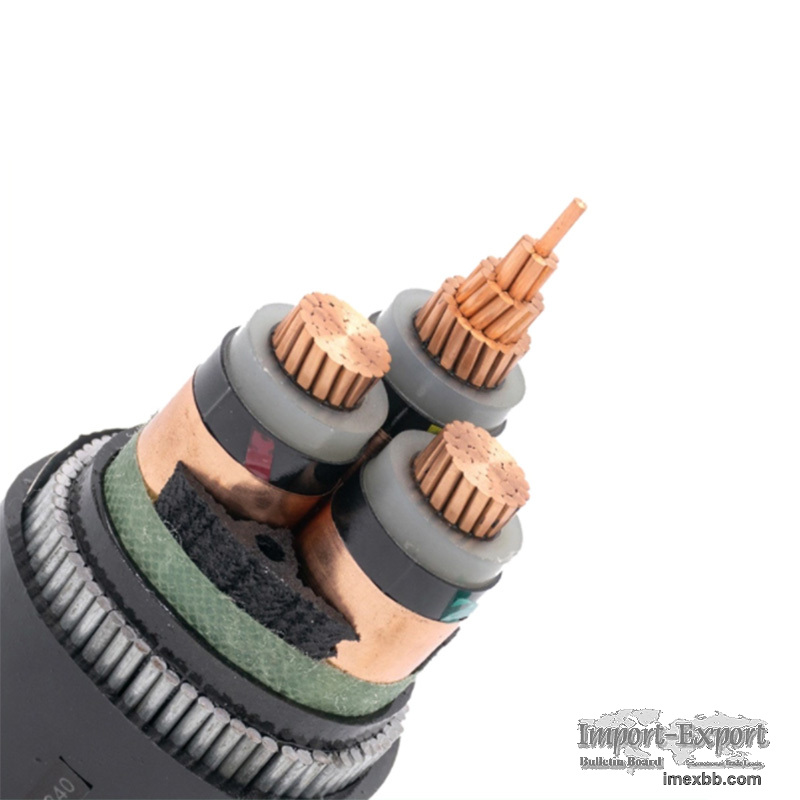

26/35kV SWA Armored Copper Power Cable
Product Description
Application
The cable are mainly used for power distribution in power stations, industrial
installation. Apply to shafts, water and soil, able to bear the larger positive
pressure.
Characteristics
Rated voltage: 26 / 35 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short
circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed
position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
Construction
26-35kv SWA Armored Copper Cable
① Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
② Conductor Screen: Semi-conductor
③ Insulation: XLPE (cross-linked polyethylene) rated at 90OC
④ Insulation Screen: Semi-conductor
⑤ Screen: Copper tape
⑥ Inner covering : PVC
⑦ Armoring: Aluminum wire - 1 core
Galvanized steel wire - 3 cores
⑧ Sheath: PVC or FR-PVC type ST2 to IEC 60502, black
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Certificates
CE, RoHS, CCC and more others at request.
Minimum Order: 100 metres
)
