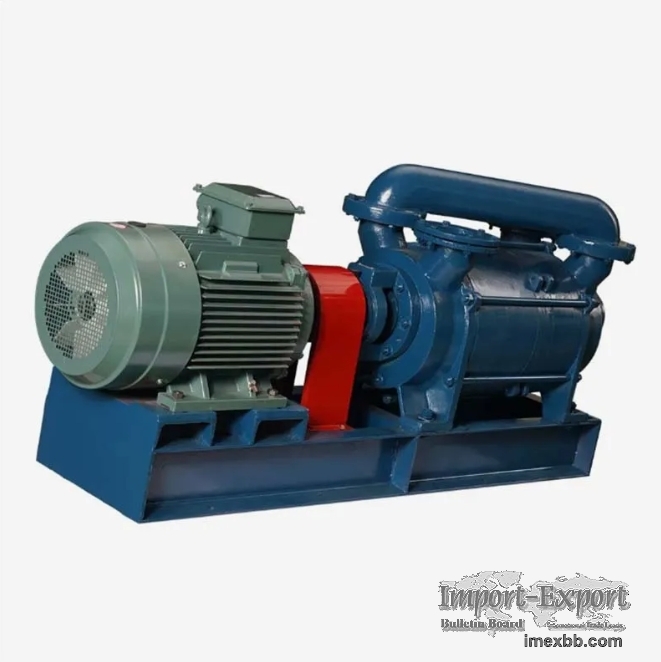

2sk-30 Liquid Ring Vacuum Pump/Motor Not Included

Greentech International (Zhangqiu) Co., Ltd is the professional liquid ring
vacuum pump supplier.

The 2SK water ring vacuum pump is widely used in industries such as chemical
machinery, light industry, medicine, and food to extract air or other gases
that are insoluble in water, do not contain solid particles, and are non
corrosive, in order to form a certain degree of vacuum in closed systems.
Commonly used in processes such as vacuum evaporation, vacuum concentration,
vacuum drying, vacuum filtration, and vacuum feeding. This series of pumps has
the characteristics of compact structure, reliable use, easy installation and
disassembly, and simple maintenance.
A liquid ring vacuum pump is a rotating positive-displacement pump. They're
ordinarily made use of a vacuum pump but can also be used as a fuel compressor.
The function of a liquid ring pump is equivalent to a rotary vane pump, with
the distinction becoming that the vanes are an integral part of the rotor and
churn a rotating ring of liquid to kind the compression-chamber seal. They may
be an inherently low-friction design, with the rotor remaining the sole moving
aspect. Sliding friction is restricted towards the shaft seals. An induction
motor typically powers liquid ring pumps.

The liquid ring vacuum pump compresses gas by rotating a cylindrical casing,
which is eccentric. Liquid (typically water) is fed into the pump and, by
centrifugal acceleration, kinds a moving cylindrical ring against the inside of
the case. This liquid ring creates a series of seals inside the space
concerning the impeller vanes, a type of compression chamber. The eccentricity
concerning the impeller's axis of rotation and the casing geometric axis
results in a cyclic variation in the volume enclosed through the vanes plus the
ring.

Applications
SK series water/liquid ring vacuum pump and compressor are widely used in
machinery, petrochemical, pharmaceutical, food, sugar, and electronic fields.
In the working process, the gas compression process is constant temperature, so
the compression and suction of explosive gas are not prone to explosion risk,
so the use of a broader range.

Features
With compact structure and easy to repair.
It has a wide range of applications. It can pump all kinds of gases containing
water vapor, flammable, explosive, a small amount
of dust and a small amount of liquid.
The main working medium is water, and the maintenance cost is low.
Able to work in harsh environment.
Model NO.
2SK-30
Exhauster Method
Liquid Ring Vacuum Pump
Vacuum Degree
Low Vacuum
Work Function
Mainsuction Pump
Working Conditions
Dry
Flow of Supiying Water(M³/H)Ate
70~90
Power Source
Electric
Key
Liquid Ring Vacuum Pump
Nominal Motor Current(a)
111.2
Transport Package
Wooden Box
Specification
2670X780X1100mm
Tradema , rk
Greentech
Origin
China
HS Code
8414
Production Capacity
1000pieces/Month

Minimum Order: 1 sets
