Product Description
1X4 Video Wall Controller Support 2X2 1X2 1X3 1080P 90 Degree Rotation for
Portrait Display



Introduction

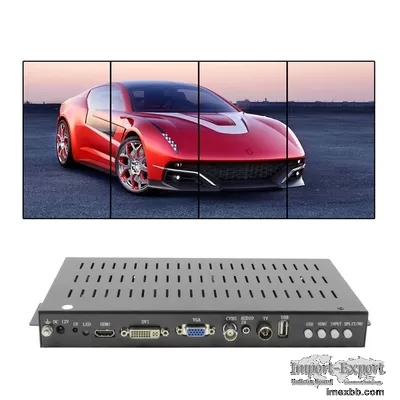

LINK-MI LM-TV04V is a Vertical 4-Channel Video Wall Controller. As a video
wall controller, it can make 1 horizontal input source to create a large
video wall in vertical. And it supports extendable display up to 10x10 (Need
more controllers); As a splitter, it can split 1 input source to 4 display
units separately.

It supports HDMI/DVI/VGA/CVBS/TV/USB total 6 input ports and 4 HDMI output
ports. User can control it easily via remote or panel buttons.



Features

1. Get vertical video wall perfectly from horizontal source, 1 large image
display on the entire 1x4 Vertical Video Wall
2. Support multiple video wall mode like 1x4,1x3, 1x3, 2x2...etc.
3. Each output individually supports 180° rotation
4. Multiple Control Ways, support controlled by remote and panel buttons.
5. No need computer and software control
6. Multiple Input Signal: HDMI/DVI/VGA/CVBS/TV/USB total 6 input ports and 4
HDMI output ports
7. High Resolution up to 1080P@60Hz
8. Extendable Display by 3x2, 3x3, 4x4...max 10x10. (needs more controllers)



Specification

Model No. LINK-MI LM-TV04V
Inputs HDMI Input 480p, 576p, 720p, 1080i, 1080p
DVI Input 480p, 576p, 720p, 1080i, 1080p
VGA Input
CVBS/AV Input PAL/NTSC/SECAM; CVBS signal (1.0Vp-p +/-5%)
TV Input Analog TV
USB Input Play movie, read text, photo from USB device
Outputs HDMI Output 4 channels HDMI output
Functions Control Ways Panel buttons, Remote
Display Modes 1x4, 1x3, 1x2, 2x2...etc.
Split/No
Split function (4 images display separately)

Splicing function (1 large image display on the entire video wall)

Mechanical Power Supply DC 12V
Power Consumption ≤1W
Housing Material Metal
Color Black
Dimension 258mm(L)134xmm(W)x34mm(H)
Weight g
Note: Specifications are subject to change without notice


Connection Diagram

2X2 1X2 1X3 HDMI Video Wall Controller 1x4 1080P 90 Degree Rotation For
Portrait Display 0





Video Wall Modes

2X2 1X2 1X3 HDMI Video Wall Controller 1x4 1080P 90 Degree Rotation For
Portrait Display 1





Panel Description

2X2 1X2 1X3 HDMI Video Wall Controller 1x4 1080P 90 Degree Rotation For
Portrait Display 2



FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more
than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and
long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product
based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of
China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support
online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will
reply you within 24 hours to help you make the order.



User Manual:

LM-TV04V Vertical 1x4 Video Wall Controller (NEW)....
