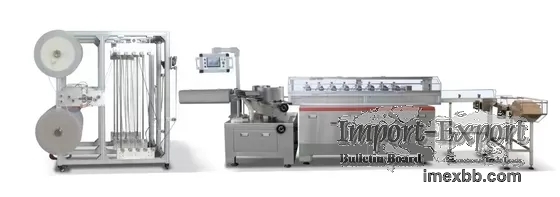

3-4 Layers Paper Straw Machine 40-100 Meters Per Minute 80dB

Automatic Paper Straw Machine Tissue Paper Machine 40-100 Meters Per Min





Description



Automatic paper straw machine is developed to make paper straws without glue,
no limit caused by climate or glue;



Finished paper straw is high temperature resistance, and degradable.



It will save labor, increase production efficiency and make your finished
products more customer-friendly.



Compact design and easy adjustment help operators to have full control of
functionality and production of the machine.



Technical Specification



Model and name YY-QSF Automatic Paper Straw Machine
Raw Material 100% wood pulp paper
Paper layers 3-4 layers
Paper thickness(from inside to outside) 120gsm,120gsm, 60gsm
Paper Tube thickness 0.3-2mm
Stable speed 40-100m/min
Tube diameter 4.5-12mm
Cutting system All servo, 8 sets of blades
Cutting length 70-1050mm
Power 380V 50HZ
Operation staff 1-2 people
Paper roll Bracket
1600*2000*1100mm



Main Part
2300*860*1270mm



Collection Part
1900*970*1770mm



Weight 1400KG
Machine advantages
(1) Space saving, Time saving;

(2) Sterilization function;

(3) No limit caused by climate or glue;

(4) Finished paper straw is high temperature resistance, and degradable.

(5) All servo motor control.

(6) Low defective rate.
