35 Ton Silicone USB Cable Liquid Silicone rubber Injection Molding Machine

35 Ton Silicone USB Cable Liquid Silicone Rubber Injection Molding Machine



TAIFU 35-ton silicone USB cable liquid silicone rubber injection molding
machine is designed to produce high-quality USB cables using liquid silicone
rubber material. With its precision, stability, efficiency, and
customization options, it provides a reliable solution for manufacturing USB
cables with consistent quality and performance.



We can customize and develop according to the actual needs of customers and
provide the most precise, efficient and economical personalized combination
solutions.



1. Sepcifications:



UNIT TFV4-35-LSR
Injection Unit Screw Diameter mm 22 28
Theoretical Injection Volume cm3 53 86
Injection Weight(LSR) g 53 86
oz 1.90 3.00
Max.Injection Pressure Mpa 248 153
kgf/cm2 2530 1563
Injection Rate cm3/s 44 71
Max Injection Speed mm/s 116
Screw Speed Rotation r.p.m 0-300
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(ton) 343(35)
Clamping Stroke mm 200
Min.Mold Thickness mm 150(210)
Max.Opening mm 350(410)
(L*W)Distance Between Tie Bars mm 410*220
(L*W)Max.Mould Size mm 340*340
Ejector Distance mm 100
Ejector Force KN(ton) 26.5(2.7)
Others System Pressure Mpa(kgf/cm2) 13.7(140)
Electric Power KW 7.5
Reserved mold electric heating power KW 3.6
Machine Dimensions L*W*H m 1.5*1.2*2.9
Machine Weight ton 1.5


2. Features:



Injection Capacity: The machine has a 35-ton clamping force, which refers to
the maximum force applied to hold the mold closed during the injection
molding process. This capacity is suitable for producing USB cables with
precise dimensions and details.

Liquid Silicone Rubber (LSR) Capability: The machine is designed to handle
the unique properties of liquid silicone rubber, a high-quality and durable
material known for its excellent heat resistance, flexibility, and
electrical insulation properties. It ensures the accurate and consistent
injection of LSR into the mold.

Precision and Stability: The machine utilizes advanced control systems to
achieve high precision and stability during the injection process. It
controls the injection speed, pressure, temperature, and other parameters to
ensure the desired quality and consistency of the molded USB cables.

Customization Options: The machine can be customized based on specific
production requirements, including mold layout, injection unit
configuration, and control system options. This flexibility allows for the
adaptation to different micro silicone products designs and production
needs.

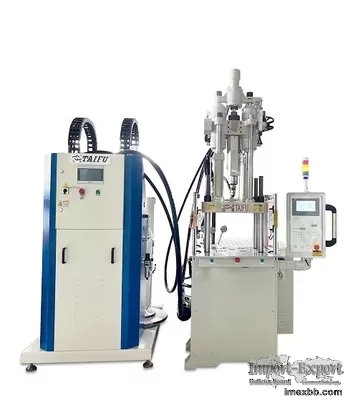

3. Machine Pictures:



35 Ton Silicone USB Cable Liquid Silicone rubber Injection Molding Machine
035 Ton Silicone USB Cable Liquid Silicone rubber Injection Molding Machine
1



4. Applications:



35 Ton Silicone USB Cable Liquid Silicone rubber Injection Molding Machine 2



5. FAQ:



Q: What are the 4 types of silicon?

A: Silicon or other semiconductor materials used for solar cells can be
single crystalline, multicrystalline, polycrystalline or amorphous.



Q: Can silicone rubber be injection Moulded?

A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to
produce pliable, durable parts in high volumes.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial
manufacturing area in China. All the machines are manufactured by our own
employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard
machines is 7~35 working days. For customized machines, it will be 40~60
working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not
man-made damages and quality problems. Our technical support will accompany
with you during the machines' lifetime. If machines are operated properly,
it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
