4-port 10/100M Base-T(X)+2-port 100M FX+2-port Gigabit SFP +1*RS232+3*RS485

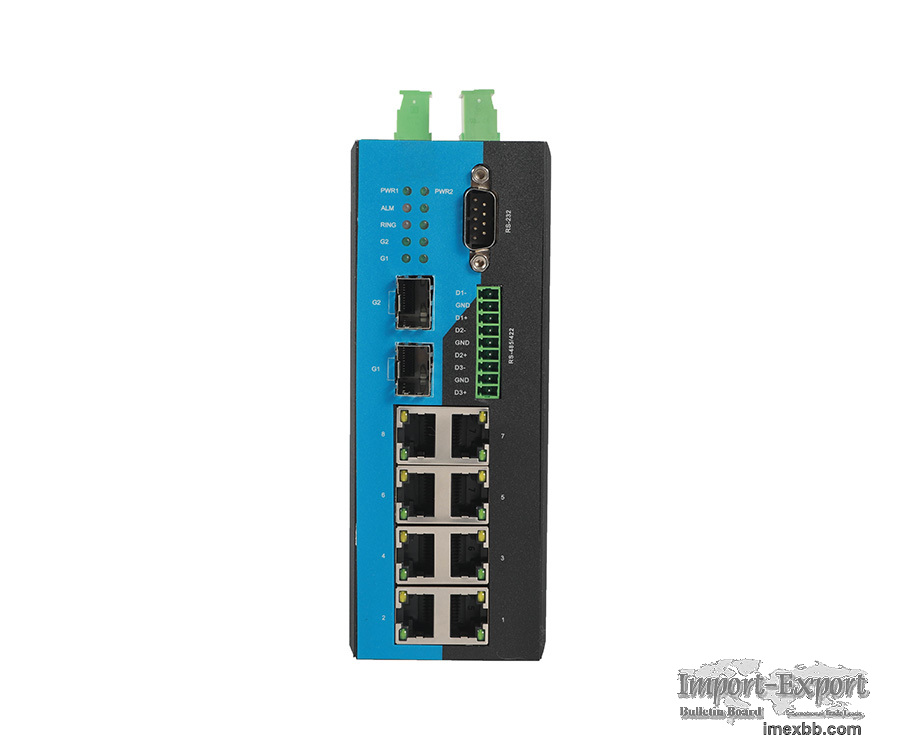

IES308-2F-2GS-404 is a 8-Port Serial Port Combo Managed Industrial Ethernet
Switch which support 4-port 10/100M Base-T(X) +2-port Gigabit SFP + 1-port
RS232+ 3-port RS485, is specially designed to meet the needs of flexible
industrial applications, and provides a cost-effective Ethernet solution.
Provides powerful management function that can be managed through a web
browser, command line (CLI), and SNMP. Support a wide range of redundant
power input (12-48V DC) to increase the reliability of the communication
network.

IES308-2F-2GS-404 can transmit the serial port data through Ethernet
network, and the optical and electric combination can flexibly carry out
according to the requirements of the service port. Base on the needs of
industrial installation, DIN35 rail or wall mounting two installation modes
provided. The product adopt with fan free, low power consumption, industrial
grade design, - 40 ~ 85°C working temperature range, which can meet the
requirements of various industrial sites and provide convenient Ethernet
communication solutions.

Support 4-port 10/100M Base-T(X) +2-port Gigabit SFP + 1-port RS232+ 3-port
RS485;

Support broadcast storm suppression function;

Support port mirroring for online debugging and monitoring of network data
status;

Support QoS, IGMP, 802.1Q VLAN management function;

Support unicast / multicast MAC address management;

Support static IGMP multicast filtering;

Support Web, CLI and SNMP three management modes;

Support RSTP and MW-Ring, for Ethernet redundancy, ring network self-
healing time < 20ms;

Support three working modes of TCP server, TCP client and UDP;

Adopt with high strength IP40 housing and industrial EMC design;

Support redundant wide voltage 12-48V DC power input, full load power
consumption less than 11W;

Support DIN-Rail Mounting or Wall Mounting installation;

Working temperature range:-40~85°C;

Warranty:5years
