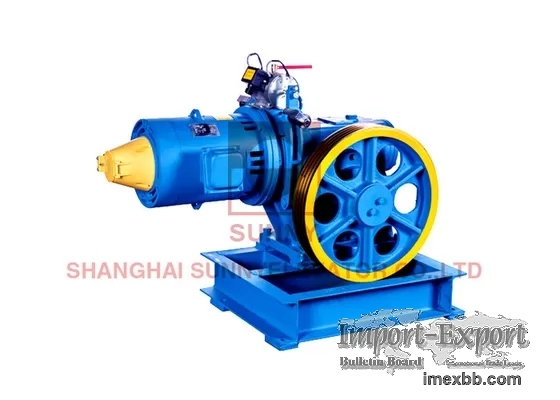

400kg Passenger Elevator Geard Traction Machine High Performance

Load 400kg elevator geard traction machine for passenger elevator

400kg Passenger Elevator Geard Traction Machine High Performance



Traction ratio:2:1

Rated capacity:400kg

Rated elevator speed:0.63,1.0m/s

Max.lifting height:30m

Noise level:＜61dB(A)

Torsional vibration:＜2.0mm/s

Horizontal and vertical vibrations:＜0.8mm/s

Brake voltage:DC 110V for brake opening, and DC110V for brake holding

Arrangement:only right side



Specification
Speed

(m/s)

Load

(kg)
,
Static

Capacity

(kg)

Redu , ction

Ratio

Traction

Ration

Traction

Sheave

Power

( , kw)

Motor

Speed

(r/min)

Power

Source

(V/Hz)

Current ,

(A)

Weight

(kg)

A-1 0.63 400 2600 1:48 1:1 450-4-11 4.0 1300
340/45 10 264
B-1 1.0 400 2600 1:30 1:1 450-4-11 4.7 1300
340/45 11.6 264


Overall dimensions and mounting dimensions

400kg Passenger Elevator Geard Traction Machine High Performance 0

400kg Passenger Elevator Geard Traction Machine High Performance 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration
is not only for wire rope and rated load, but also considered the size of the
traction, as a result, the tensile strength of wire rope is greater than the
weight of the lift. The safety factor is equipped with more than four wire
rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and
mechanical safety device. In case of power failure,elevator brakes will
automatically taken. In addition, the power supply departments such as planned
outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator
will automatically restart without any danger. With anti clamping switch, once
the gate touched, this switching action make the elevator unable to be closed
and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor)
traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to
the operation complexity. Therefore, escalators designed by us apply an
integrated structure, so that the equipment is more precise and more efficient
and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
