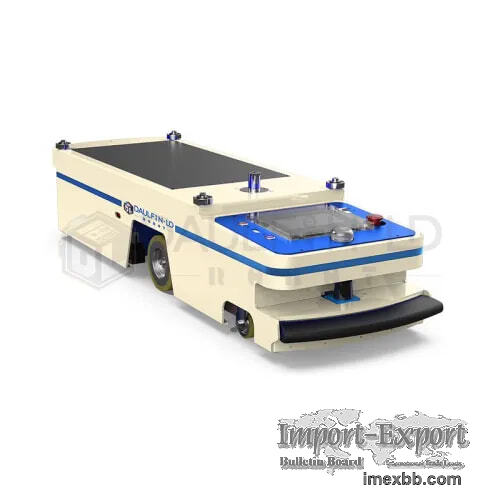

DL-LT-01 Unidirectional Latent Traction AGV 500/1000/1500kgs

Daulfinld Unidirectional Latent Traction AGV: Revolutionizing Under-Drive
Towing Robot Efficiency

Unidirectional Latent Traction AGV technology redefines material handling
automation. The Daulfinld DL-LT-01 model exemplifies cutting-edge Under-Drive
Towing Robot​​ engineering, delivering unparalleled space utilization and
operational reliability for modern industrial environments.

Our Certified Latent Tractive AGV has an optimized motion performance to
achieve more cost-effective productivity.  After receiving system
instructions, AGV will automatically move to the bottom of material vehicles,
and rise the towing rod to hook material vehicles, so as to achieve end-to-end
material transfer. roduction procedures.

Specifiation:
Dimension L*W*H (mm) L1450*W420*H290 (mm)
Maximum load 500KG\1000KG\1500KG
Navigation  Magnetic Navigation
Walking direction  Forward, Turn left and Right
Rated Speed (m/m) 45
Navigation accuracy ±10mm
Stopping accuracy  ±10mm
Max. Rotation Speed (°/s) 200
Safety warning  ●Light warning     ●Voice broadcast
Position Accuracy (mm) ±10,±1
Battery type Leadacid / Lithium battery
Charging method  Side charge / Ground charge
Charging Time (h) 1.5
Driving Mode Differential Drive
Lifespan >10years
