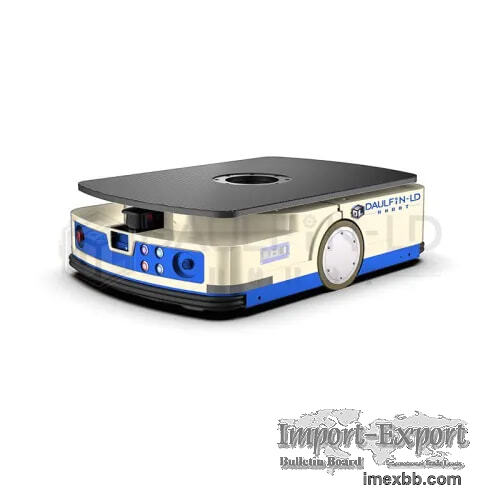

DL-LL-01 Latent Lift AGV (Automated Guided Carts)

Smart Wheel Latent Lift AGV: Precision Automation for Industrial Efficiency​​

Daulfin's Automated Guided Carts redefine material handling with intelligent
design and robust performance. Engineered for seamless integration into dynamic
industrial environments, our Latent Lift AGV (Model DL-LL-01) combines cutting-
edge navigation with unparalleled payload capacity.

Working method:

When receiving the system command, the AGV automatically lurks to the bottom of
the material rack and lifts it, then carries out material transportation.

Specifiation:
Maximum load 1000kg
Navigation QR code navigation / SLAM navigation
Walking direction Forward, backward, rotate
Rated Speed (m/s) 2.0
Position Accuracy (mm, °) ±10,±1°
Stopping accuracy  ±10mm
Max. Rotation Speed (°/s) 200
Safety warning  ●Light warning     ●Voice broadcast
Battery type Lithium battery
Charging method  Side charge / Ground charge
Charging Time (h) <1.5
Driving Mode Differential Drive
Lifespan >10years


Customization & Scalability​

Tailor your Automated Guided Carts for unique demands:
Navigation Modes: Choose SLAM for dynamic spaces or QR codes for fixed paths.
Fleet Intelligence: Central Management System (CMS) synchronizes multi-AGV
tasks.
Bespoke Solutions: Custom payloads (e.g., PCB trays), safety protocols, or
layout adaptations.
