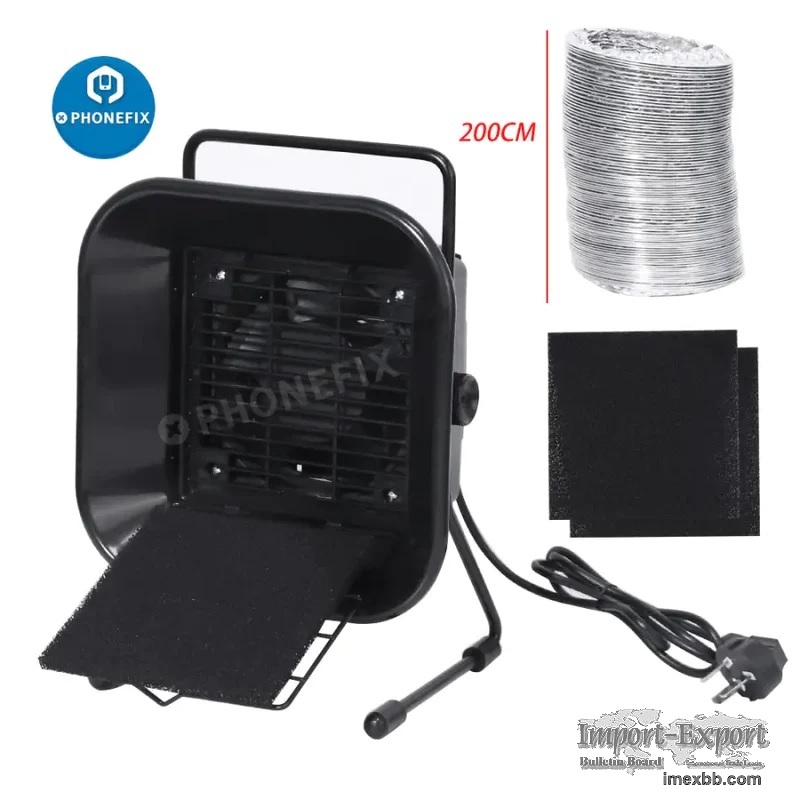

493 Desktop Soldering Iron Fume Absorber Air Filter

30W 220V 493 desktop solder iron smoke absorber with smoking pipe interface,
fume extractor soldering iron work air filter smoke fan tool, 30W 493 solder
smoke absorber ESD fume extractor, 220V portable solder smoke absorber ESD
fume extractor for soldering iron work, desktop solder smoke absorber
extractor air filter fan with activated carbon filter sponge

220V Portable Solder Smoke Absorber ESD Fume Extractor For Soldering Iron
Work Soldering Smoking Fan with Activated Carbon Filter Sponge

Product Description :

Outer casing is Made of anti-static materials. It's anti-static and safe.
Special appearance structural design for powerful absorbing.
Soldering work requires a flux.
This flux is mainly composed of rosin-resin,and is mixed with a slight
activator(halogen organic agent), which is commonly called"pine resin".
Rosin acid, the main component of rosin, will change to new rosin acid when
the temperature rises. In this case, harmful components such as salicylic
acid and pinene are produced in the vaporized smoke.
Flux containing large quantities of resin generate phenol and activators
generate hydrogen chloride, etc.
The specified concentration of these toxic gases is regulated by the ACGIH
standards of the Japan Industrial Hygiene Association. Inhalation of such
toxic ingredients can cause headaches, nausea, eye irritation, etc.
493 is a newly developed product with a high performance fan and an
activated carbon filter designed to absorb flux and lead fumes

Product Specification :

Model: 493
Materials: Plastic + Metal
Color: Black
Power: 220V
Decibel: About 60
Size: 220cm*270cm*168cm
Weight: 1.5kg
Power Consumption : 30W
Power consumption: 14 / 16W (50 / 60Hz)
Absorb Into Quantity : About 1.07mxmxm/min or 0.93 mxmxm/min
AC: 50 / 60Hz

Air Flow :

50Hz: 22W, 0.93Cube Meters per minute
60Hz: 30W, 1.07Cube Meters per minute

Product Features :

Compact structure, easy to move.
Activated carbon filter sheet can be replaced.
Low motor with double ball bearing, stable running and low noise.

Package included :

1pcs x Desktop Smoking Absorber
1pcs x Activated Carbon Foam
1pcs x Smoking pipe interface

Minimum Order: 1 pieces
