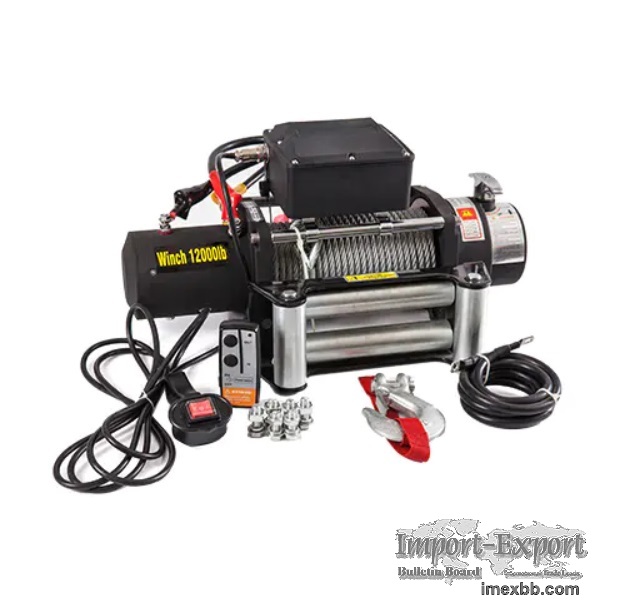

4x4 electric winch off road winc-SC12.0FX

4x4 electric winch off road winc-SC12.0FX
Product Details
Control box (solenoid housing) sealed and waterproof.
12V or 24v, steel wire or synthetic rope both available.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment,
to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation
options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed Off-Road winch body, well working in bad weather.
Rated line pull 12000lb (5443kg) single line
Motor 6.6hp/4.85kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Con , trol Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch Rotating clutch
Braking Automatic load-holding brake
Drum size Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Cable Ø9.1mm*28m
Fairlead 4-way roller fairlead
