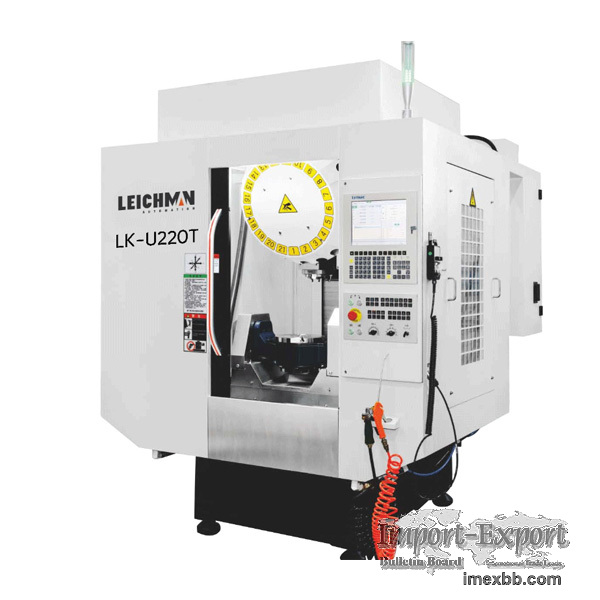

5 Axis Machining Center LK-U220T

5 Axis Machining Center LK-U220T
High performance, high precision
Widely applicable to complex, multi-faceted, high-precision, multi-faceted
processing of product parts/moulds/electrodes.
Suitable for high-quality processing of any material.
Stable material selection and reliable performance
Name Unit Name Unit
X-axis travel mm 600 A-axis braking method Air brake
Y-axis travel mm 400 The distance from the spindle end face to the
worktable 400
Z-axis travel mm 300 Workbench(turntable) dimensions mm 260
X-axis rapid movement spee m/min 48 Turntable load-bearing kg
30
Y-axis rapid movement speed m/min 48 Spindle taper shank model
spedifications BT30
Z-axis rapid movement speed m/min 48 Spindle maximum speed rpm
20000
X/Y/Z axis positioning accuracy mm ±0.008 Spindle rated power kw
5.5
Repeatable positioning accuracy of X/Y/Z axis mm ±0.005 Spindle rated
torque N.m 11
A-axis travel( tilt axis) ° ±110 Spindle maximum torque N.m
22
