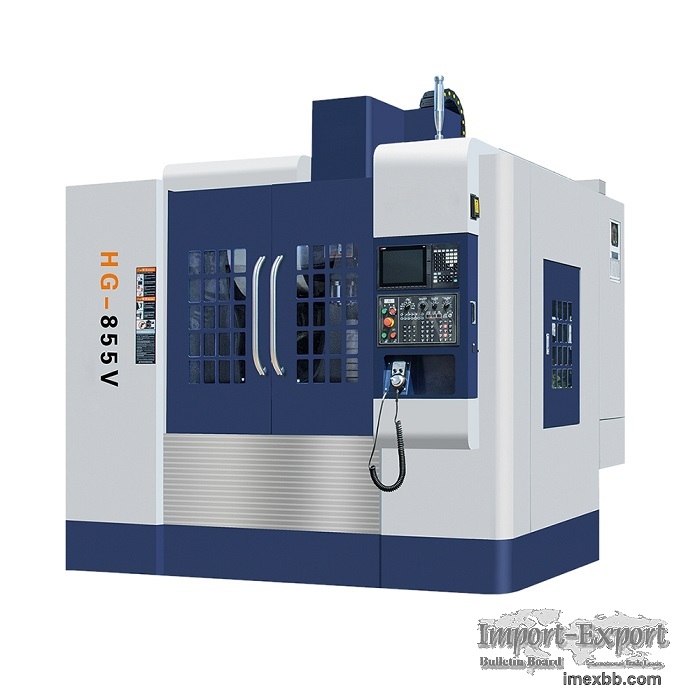

China Vertical Machining Center HG855V

Vertical Machining Center (VMC) – HG855V is an automatic power vertical milling
machine with CNC (Computer Numerical Controlled) control and tool magazine. It is
used to mill 2D/3D shapes or patterns on various materials. It uses a rotating
cylindrical tool that can move along multiple axes and create a variety of shapes,
slots and holes. In addition, the workpiece is often moved across the milling tool
in different directions.

HG Machinetools CNC Vertical Machining Center (VMC) is suitable for engraving,
carving, milling, cutting and drilling most materials. Therefore, it is widely
used in injection mold, hardware mold, metal mold and other molding industries. It
is especially designed for batch milling molds, watch, eyeglasses, panel, brand,
badge, outer surface’s sleeking, three-dimensional graphics and words. Besides,
it’s easy for this mill to form 2D or 3D reliefs on a wide range of materials.

HG Machinetools Vertical Machining Center machine body, work table, column,
milling head, etc. are all made of high-strength cast iron, and undergo secondary
tempering and aging treatment to optimize the reinforcement structure, making the
overall performance more in line with the requirements of processing
characteristics and stability.

855V HG Machinetools

A. Advantages of HG Machinetools’ Vertical Machining Center (VMC)- HG855V
1. The guide rail of the machine body adopts a large span design, and the column
adopts an A-shaped structure design, which makes the machine tool rigid and
thermally stable.
2. Taiwan imported high performance spindle, optionally equipped with spindle oil
cooling device to control spindle temperature rise and improve cutting accuracy.
3. All three feed axes are supported by Taiwan-imported linear roller guides,
ensuring the accuracy of three-axis positioning.
4. Both ends of the ball screw are pre-stretched, which increases the rigidity of
the transmission and eliminates the thermal deformation caused by rapid motion in
advance.
5. Our vertical machining center adopts a splash-proof sheet metal fully
protective design, which is beautiful and elegant, ensuring the personal safety of
operators.

B. Key Features of HG Machinetools’ Vertical Machining Center (VMC) – HG855V
a. Fully Enclosed Cover
b. Integrated Controller
c. Servo Motors
d. Tool Magazine
e. With FANUC control system
f. Automatic Lubrication System
g. HIWIN/PMI Roller Type Linear Guide
h. HIWIN/PMI Ball Screw
i. FAG Bears
j. OKADA/Aimach Tool Magazine

C. Optional
1. Different Control System Optional
2. 4th-Axis / 5th-Axis Optional
3. Different Speed of Spindle Optional
4. Different Type of Tool Magazine Optional
5. Tools Capacity of Tool Magazine Optional

D. Some Specific Configurations
High Strength Castings
The machine body, work table, column, milling head, etc. of HG Machinetools
Vertical Machining Centers are all made of high-strength cast iron, and are
subjected to secondary tempering and aging treatment to optimize the reinforcement
structure, making the overall performance more in line with the requirements of
machining characteristics and stability.

High Strength Castings HG Machinetools
CNC Controller HG Machinetools
CNC Control System
Fanuc(Japan), Mitsubishi (Japan), Syntec (Taiwan,China) Optional

Adoption of powerful and highly reliable high-speed microprocessor systems;
Dynamic toolpath simulation, intelligent warning display, self-diagnostics and
more;
Multi-segment pre-reading control is particularly suitable for high-speed and
large program processing;
RS-232 serial transmission, memory card transmission, USB transmission, combined
with DNC standard processing configuration, facilitates the transmission of large-
capacity programs and online processing, with better processing efficiency and
effectiveness.
Spindle From Taiwan, China
Speed 6000/8000/10000/12000 RPM Optional

The spindle and motor belt are designed with a 1:1 connection, and the main motor
is a low inertia motor with a speed of 10000 rpm. It is a wise choice for high
precision, high rigidity and heavy cutting situations; if there is a higher
requirement for surface smoothness, a 12000 rpm direct spindle can also be
selected.

Spindle HG Machinetools
Cooling system HG Machinetools
Cooling System
HG Machine is equipped with a cooling system, and the combination of a large flow
pump and many nozzles can solve the machining problems of tool overheating and
workpiece deformation due to machining heat.

E. Some Components of Our CNC Machining Centers
CNC Control System Fanuc
Tool Magazine
Linear Guideway HIWIN
Lubricating oil system
Manual Pulse Generator
Heat Exchanger
ITEM UNIT HG-850V HG-855V HG-1160V HG-1275V HG-1370V
HG-1580V
Travel of X Axis (Left-Right) mm 800 800 1100 1200 1300
1500
Travel of Y Axis(Front-Back) mm 500 550 600 750 700
800
Travelof Z Axis(Up-Down) mm 500 550 600 600 700
700
Distance from workbench to spindle end face mm 150-650 150-700 120-720
120-720 80-780 150-850
Distance from the front end of column to the center of Spindle mm 600
643 650 775 810 925
Working Table Size(L*W) mm 1000×500 1000×550 1200×600
1300×700 1400×700 1600×800
Max. Loading Weight kg 400 500 800 1000 1600 1600
Working Table T-Slot mm 18T×90×5 18T×90×5 18T×100×5
18T×100×6 18T×110×5 18T×110×7
X/Y/Z Axis Rapid Feeding Speed m/min 48×48×48 48×48×48 36×36×36
36×36×36 30×30×30 30×30×30
Power of X/Y/Z Axis According to the Control System According to the
Control System According to the Control System According to the Control System
According to the Control System According to the Control System
Roller Guideway of X/Y/Z X:35(4Rollers)
Y:35(4Rollers)
Z:35(4Rollers) X:35(4Rollers)
Y:45(4Rollers)
Z:45(6Rollers) X:45(6Rollers)
Y:45(4Rollers)
Z:45(6Rollers) X:45(6Rollers)
Y:55(4Rollers)
Z:45(6Rollers) X:45(6Rollers)
Y:45(8Rollers)
Z:45(6Rollers) X:55(6Rollers)
Y:45(4Rollers)
Z:55(6Rollers) ,
Ball Screw of X/Y/Z 4016 4016 4012 4012 4512 5010
Speed of Spindle rpm 8000/10000/12000 8000/10000/12000
8000/10000/12000 6000/8000/10000/12000 6000/8000/10000/12000
6000/8000/10000/12000
Spindle Taper BT40 BT40 BT40 BT40/BT50 BT40/BT50
BT40/BT50
Transmission Type mm Belt／Direct Connect Belt／Direct Connect
Belt／Direct Connect Belt／Direct Connect Belt／Direct Connect Belt／
Direct Connect
Spindle Motor kW According to the Control System According to the Control
System According to the Control System According to the Control System According
to the Control System According to the Control System
Position accuracy mm ±0.003/300 ±0.003/300 ±0.003/300
±0.005/300 ±0.005/300 ±0.005/300
Repeatability position accuracy mm ±0.003/300 ±0.003/300
±0.003/300 ±0.003/300 ±0.003/300 ±0.003/300
Tool Magazine (Tools Qty) T BT40-24 BT40-24 BT40-24 BT40-24T/BT50-24T
BT40-24T/BT50-24T BT40-24T/BT50-24T
Control System Syntec/Mitsubish/Fanuc Syntec/Mitsubish/Fanuc
Syntec/Mitsubish/Fanuc Syntec/Mitsubish/Fanuc Syntec/Mitsubish/Fanuc
Syntec/Mitsubish/Fanuc
Machine Floor Space (LxWxH) mm 2700×2400×2500 2700×2400×2600
3100×2450×2800 3300×2500×2800 3600×2800×2800
4400×3200×3000
Pressure Requirement kg/cm² 6-7 6-7 6-7 6-7 6-7 6-7
Power Supply Kva 20 20 20 25 30 35
Edit
Machine Weight kg 5200 5500 7000 8500 10000 13000

Minimum Order: 1 sets
