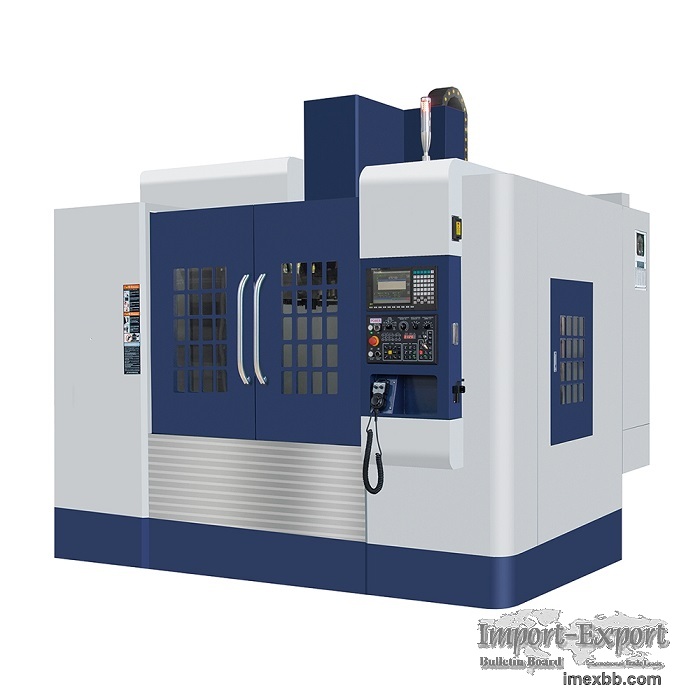

China Vertical Machining Center HG1160V

Vertical Machining Center – HG1160V can manufacture the high quality parts to a
higher level of detail and better surface finish. The core function of CNC Milling
machine involves mechanically cutting away at a workpiece into the desired shape.
It is engineered to mass-produce many components from various materials, but with
minimum human input needed to complete the manufacturing or production.

ITEM UNIT HG-1160V
Travel of X Axis (Left-Right) mm 1100
Travel of Y Axis(Front-Back) mm 600
Travelof Z Axis(Up-Down) mm 600
Working Table Size(L*W) mm 1200×600
Max. Loading Weight kg 800
Machine Floor Space (LxWxH) mm 3100×2450×2800
Machine Weight kg 7000
Vertical Machining Center – HG1160V is an automatic power mill with CNC (Computer
Numerical Controlled) controller. It is used to mill 2D/3D shapes or patterns on
various materials. It uses a rotating cylindrical tool, which is able to move
along multiple axis, and can create a variety of shapes, slots and holes. In
addition, the workpiece is often moved across the milling tool in different
directions.

HG Machinetools CNC Vertical Machining Center (VMC) is suitable for engraving,
carving, milling, cutting and drilling most materials. So it is widely used in
injection mould, ironware mould, metal molds and other molding industries. It is
especially designed for batch milling molds, watch, eyeglasses, panel, brand,
badge, outside surface’s sleeking, three-dimensional graphics and words. Besides
that, it’s easy for this mill to form 2D or 3D relieves on a wide range of
materials.

HG Machinetools Vertical Machining Center machine body, worktable, column, milling
head, etc. are all cast from high-strength cast iron, and undergo secondary
tempering and aging treatment to optimize the reinforcement structure, making the
overall performance more in line with the requirements of processing
characteristics and stability.

Vertical Machining Center HG1160V HG MachinetoolsA. Advantages of HG
Machinetools’ Vertical Machining Center – HG1160V
1. Machine body’s guide rail adopts a large span size design, and the column
adopts an A-shaped structure design, which makes the machine tool rigid and
thermally stable.
2. Taiwan imported high-performance spindle, optionally equipped with spindle oil
cooling device to control spindle temperature rise and improve cutting accuracy.
3. All three feed axes are supported by Taiwan imported linear roller guides,
ensuring the accuracy of three-axis positioning.
4. Both ends of the ball screw are pre stretched, increasing the transmission
stiffness and eliminating the thermal deformation generated during rapid movement
in advance.
5. Our Vertical Machining Center adopts a splash proof sheet metal fully
protective design, which is beautiful and elegant, ensuring the personal safety of
operators.

B. Key Features of HG Machinetools’ Vertical Machining Center – HG1160V
a. Fully Enclosed Cover
b. Controller Integrated
c. Servo Motors
d. Tool Magazine
e. With FANUC control system
f. Automatic Lubrication System
g. HIWIN/PMI Roller Type Linear Guideway
h. HIWIN/PMI Ball Screw
i. FAG Bears
j. Tool Magazine OKADA/Aimach

C. Optional
1. Different Control System Optional
2. 4th-Axis / 5th-Axis Optional
3. Different Speed of Spindle Optional
4. Different Type of Tool Magazine Optional
5. Tools Capacity of Tool Magazine Optional

D. Some Specific Configurations
High Strength Castings
The machine body, work table, column, milling head, etc. of HG Machinetools
Vertical Machining Centers are all made of high-strength cast iron, and are
subjected to secondary tempering and aging treatment to optimize the reinforcement
structure, making the overall performance more in line with the requirements of
machining characteristics and stability.

High Strength Castings HG Machinetools
CNC Controller HG Machinetools
CNC Control System
Fanuc(Japan), Mitsubishi (Japan), Syntec (Taiwan,China) Optional

Adoption of powerful and highly reliable high-speed microprocessor systems;
Dynamic toolpath simulation, intelligent warning display, self-diagnostics and
more;
Multi-segment pre-reading control is particularly suitable for high-speed and
large program processing;
RS-232 serial transmission, memory card transmission, USB transmission, combined
with DNC standard processing configuration, facilitates the transmission of large-
capacity programs and online processing, with better processing efficiency and
effectiveness.
Spindle From Taiwan, China
Speed 6000/8000/10000/12000 RPM Optional

The spindle and motor belt are designed with a 1:1 connection, and the main motor
is a low inertia motor with a speed of 10000 rpm. It is a wise choice for high
precision, high rigidity and heavy cutting situations; if there is a higher
requirement for surface smoothness, a 12000 rpm direct spindle can also be
selected.

Spindle HG Machinetools
Cooling system HG Machinetools
Cooling System
HG Machine is equipped with a cooling system, and the combination of a large flow
pump and many nozzles can solve the machining problems of tool overheating and
workpiece deformation due to machining heat.

E. Some Components of Our CNC Machining Centers
CNC Control System Fanuc
Tool Magazine
Linear Guideway HIWIN
Lubricating oil system
Manual Pulse Generator
Heat Exchanger
