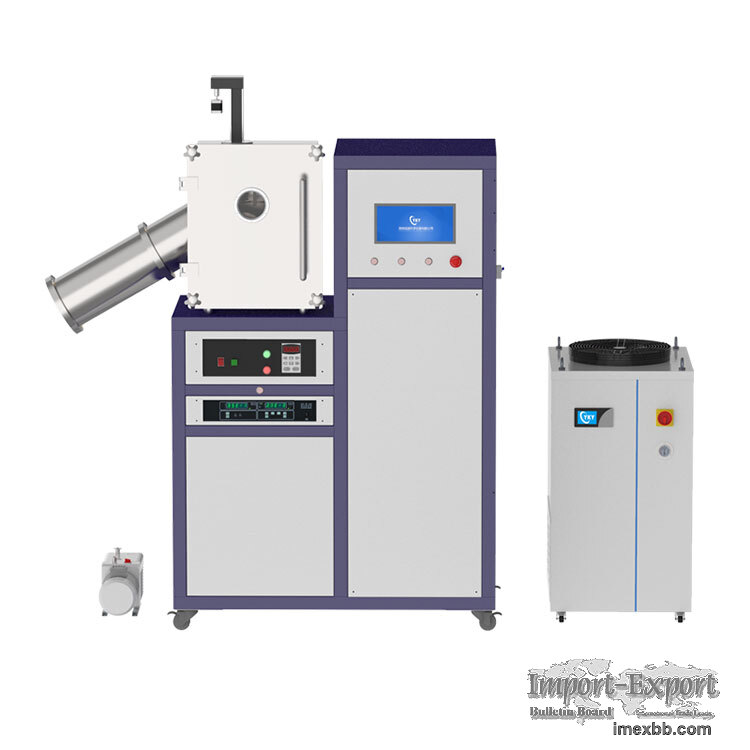

50g 15kw Vacuum Melt Spinning Furnace For Amorphous Metallic Ribbons

CYKY-BTF-500 Vacuum Melt Spinning System/Furnace with Precision Temperature
A lab-scale vacuum melt spinning system for preparing amorphous metallic ribbons.
In this technique, metal ingots (<50g) are melted via induction heating method and
then propelled by over-pressurizing the crucible.

Feature:
The complete system consists of the stainless steel vacuum chamber, vacuum system,
induction heating system, rack system and discharging tubular collector.
Copper roller linear speed: 5 ~ 60m / S
Melting metallic samples: 5g ~ 50g/Per batch
Vacuum casting device (not included in standard configuration)

Power supply:
Voltage: AC380V, three-phase
Maximum power 15kw (60A air switch required)

Vacuum chamber & vacuum pump:
Vacuum chamber size: Φ 500mm x 400mm L
Hinged cavity door with quartz observation window
Molecular pump system is installed in the equipment
Vacuum: 5 X10 E-5 Torr (within 20 minutes)
Limiting vacuum 10e-7 Torr (to be baked)

Induction heater & temp Controller:
Heating power: 15kw; frequency range: 30 ~ 80kHz
Melting sample quantity: 10 - 50g (depending on the material)
Accurate temperature control system, B-type thermocouple, 30 temperature rise and
fall procedures can be set
Temperature control accuracy: + / - 2 ℃

Crucibles:Quartz crucible or BN crucible can be used according to customers'
requirements

Spinning wheel:
Standard copper roller cooling without water
Linear speed of copper roller: 5 ~ 60m / S
Optional:
Optional water-cooled copper roller with a maximum sample handling capacity of 500g
Optional vacuum casting module

Optional accessories:
Casting accessories (casting, spray casting) can be purchased according to
requirements
The water cooling system can be customized for the casting copper mold according to
the requirements

Dimension:2000×11 , 00×1800mm(L×W×H)
Weight:~800Kg
Certificat , e:CE certificatio

Minimum Order: 1 sets
