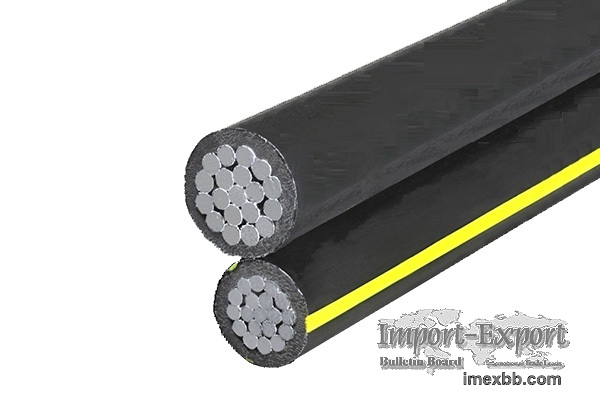

600V Duplex Conductor URD Cable

The Duplex Aluminum 600V Single Conductor URD Cable is designed for using in
power secondary distribution circuits, which is also called copper urd cable,
copper urd wire. It is used in wet and dry areas and installed in duct or
direct burial applications. The maximum working temperature is limited to
90°C. The voltage rating is 600 volts. This cable can also be provided pre-
pulled into duct as an alternative. It is made of crosslinked polyethylene
insulation and concentric stranded or compressed 1350-H19 series aluminum
conductor. Cable surface printed with the necessary content, neutral phase
identified with triple yellow strips, or black neutral if desired.

600V Duplex Conductor URD Cable Features
01.
STANDARD
ASTM B-230, B-231 and ICEA S-66-524, UL Standard 854 for type USE, Federal
Specification JC-30B NEC

02.
Application
Just like triplex urd cable and copper urd triplex wire, this type of
electrical cables for sale can be directly buried or installed in ducts for 600
volt secondary distribution.

03.
Cable in Duct(CIC)
Abrasion Resistant

Specifications of 600V Duplex Conductor Aluminum URD Cable

Ampacity: 90°C conductor temperature, 20°C ambient temperature. RHO 90. 100%
load factor. All Yellow Extruded Stripe, cable is XLP insulation.
To determine correct ampacity by conductor size, please consult the National
Electric Code, latest edition.
Packaging: Available in 500 ft.coils 500ft. reels and long lengths.
The above data are approximate and subject to normal manufacturing tolerances.

Minimum Order: 100 metres
