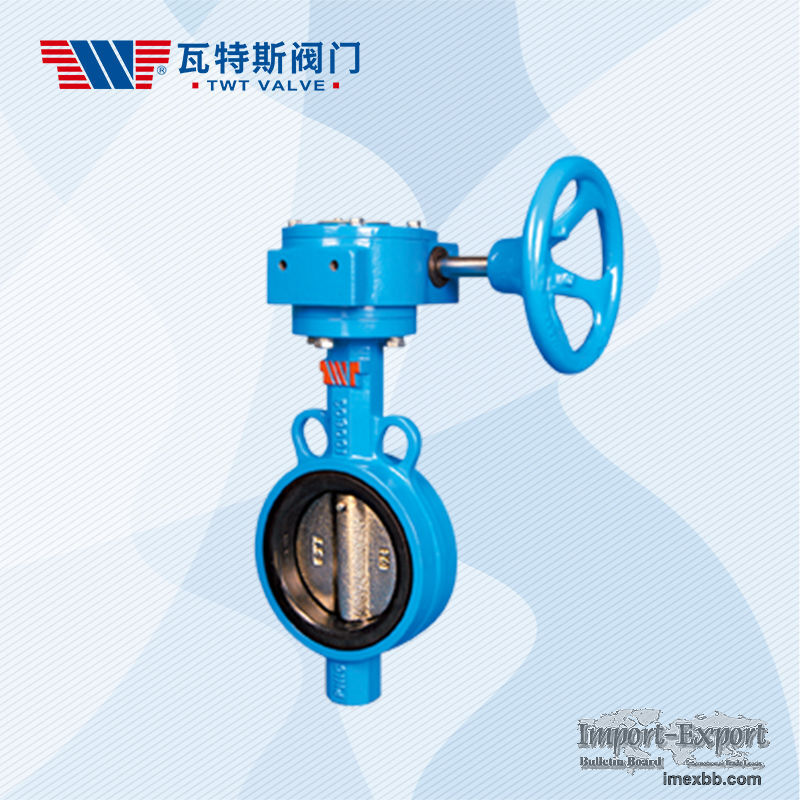

609A to clip butterfly valve

609A to clip butterfly valve
Fluid Medium Water, Oil, Gas And Various Corrosive Media
Temperature Range -10℃～120℃
Pressure Ratings Pn1.0～1.6mpa
Size Range Dn50～dn1200
Connection Type Double Folder
Connection Standard Gb·ansi·din·api·iso·bs
Valve Life 50 Years
Body Materials cast iron butterfly valve；ductile Iron；carbon Steel；
stainless Stee；aluminum Bronze
Valve Seat Material Rubber
Valve Plate Material Stainless Steel；aluminum Bronze；ductile Iron
Note All Parts Can Be Made Of Different Materials According To Actual
Working
china butterfly valve Features and advantages:
Reduce the rotational torque, support the stem, and make it separate from the
valve body effectively, reduce the wear of the valve stem.

After polishing treatment, and the valve seat with precision.

To achieve zero leakage requirements of air tightness test, the opening and
closing torque is small, prolong the service life of the valve seat.

Stem seal is not easy to deform, thereby avoiding the usual stem leakage.

High precision, high strength, suitable for the installation of handle and
other control devices.

Firmly connected with the valve stem and valve plate, with anti vibration
characteristics, and easy to replace.

Good integrity, easy to control the opening and closing of the valve plate.

It has the characteristics of no shedding, tension, leakage prevention and
convenient replacement.

As a device for regulating or cutting off a medium in a pipeline.

Apply to handle control device (DN50~300), worm gear, electric and pneumatic
control device.
