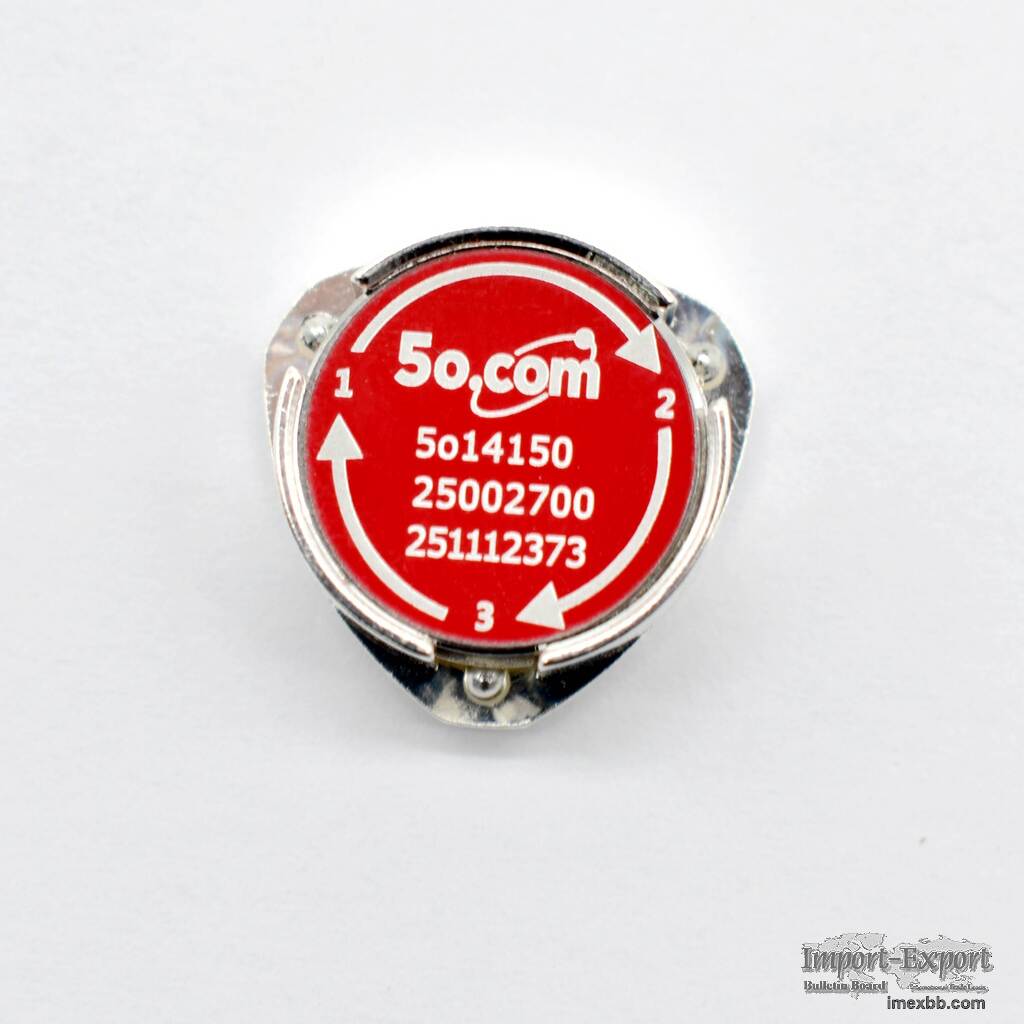

700 ~ 5000MHz SMD SMT Surface Mount Microwave Circulator for Wireless Commu

Type：RF Surface Mount Circulator
Brand：5o.com
Part Number：5o14150
Frequency Range(GHz)：700~5000MHz
Insertion loss(Max.dB)：0.3dB
Isolation(Min.dB)：23dB
VSWR：1.2
Forward Power：60W
Reverse Power：60W
Connector Type：SMT
Operating Temperature：-40~+85°C
Storage Temperature：-55~+125°C
Dimension：Φ15.5*7m , m
Impedance：50Ω
Warranty：1 year
Customize design：Available

5o.com is a modern high-tech enterprise specializing in the research,
development, production, and sales of RF microwave passive components. Focusing
on independent innovation, the company primarily manufactures microwave passive
components such as RF isolators, circulators, coaxial loads (terminals),
coaxial attenuators, power splitters, waveguide-to-coaxial converters,
directional couplers, filters, and duplexers/multiplexers. These products are
widely used in 5G communications, satellite navigation, radar electronic
countermeasures, and aerospace applications.
700 ~ 5000MHz SMD SMT Surface Mount Microwave Circulator for Wireless Commu
Enlarge Click to Enlarge
