750cd/M2 MDT Mobile Data Terminal Tablet 1280*800 10.1 Inch

E9668A Android 10.1-inch display and control terminal, Fleet management display and
control terminal for trucks and vehicles

1. E9668 is suitable for excavator automatic driving and excavator operation
scheduling. Through the E9668 display control terminal, you can quickly get the
working status of the excavator and control the operation of automatic driving,
which can improve the work effectively
2. E9668 can record the working status of construction machinery vehicles, and
these data will ensure that the working efficiency of construction machinery
vehicles is improved
3.E9668 highly meets the demand in agricultural/industrial display needs;
Product advantages

1. High performance display support the golve mode
2. Android 9.0 operate system, easy for development and use
Product features /Specification

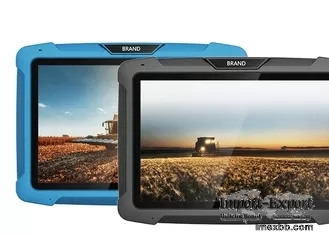

Product appearance
Type Detail Standard configuration
IP Rate Waterproof IP66
LCD Dimension 10.1",1280*800 with 750cd/M2
TP Touch panel Support 10 points capacitive screen,G+G
Speaker Build in 4Ω/2W
Super capacitor Build in 5.4V/10F
Hardware cnfiguration
Type Detail Standard configuration
CPU Model Qualcomm SDM450,Octa-core ARM Cortex-A53 64-bit CPU @ 1.8 GHz
RAM 　 2GB
ROM 　 16GB
Sensor 　 Accelerometer
Wireless communication
Type Detail Standard configuration
WIFI WIFI module 2.4G+5G WiFi,IEEE802.11 g/b/n /ac
Bluetooth built in BT2.1+EDR/3.0/4.1/4.2 BLE
GNSS built in GPS+BD
3G/4G built in
Module:SC60CEYB-16GB-UGAD cat6 (LTE 4G CHINA)
LTE FDD :B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
TD-SCDMA:B34/B39
WCD , MA :B1/B8
CDMA2000/EVDO:BC0
GSM:900/1800MHz
, M1,M2,M3 port function extension
Type Detail Standard configuration
M1 PORT(12pin) Extend RS232 UART*2
DC11V output 500mA*3
Input IO(9-36V)*1
RS485*1
M2 PORT(10pin) Extend CAN *2
1 input IO(2-36V)*1
power input,B+,B- ,ACC (9-36V input)
M3 PORT(8pin) Extend USB-HOST*1
Camera*2
Interfaces
Type Detail Standard configuration
USB device USB Micro-USB X1
USB HOST USB HOST USB type-A x1
Double SIM Card 3G/4G SIM card Standard SIM card interface x1+E-SIM card
TF Card TF Support SDHC*1 max:128GB
GNSS Fakra Fakra C interface*1
4G Fakra Fakra D interface*1
M1,M2,M3 port Extend 12pin/10pin/8pin
Button button Power button
Accessory
Type Detail Standard configuration
M1 cable full function E9638_12pin full functional cable
M2 cable full function E9638_10pin full functional cable
M3 cable full function E9638_8pin full functional cable
GNSS antenna external 1575.42±1.023MHZ 1602±8MHZ, DC current:10mA,FAKRA
C head；80cm length
LTE antenna external 4G LTE,central frequency
824MHz~960MHz,1710MHz~2200MHz,2300MHz~2700MHz
