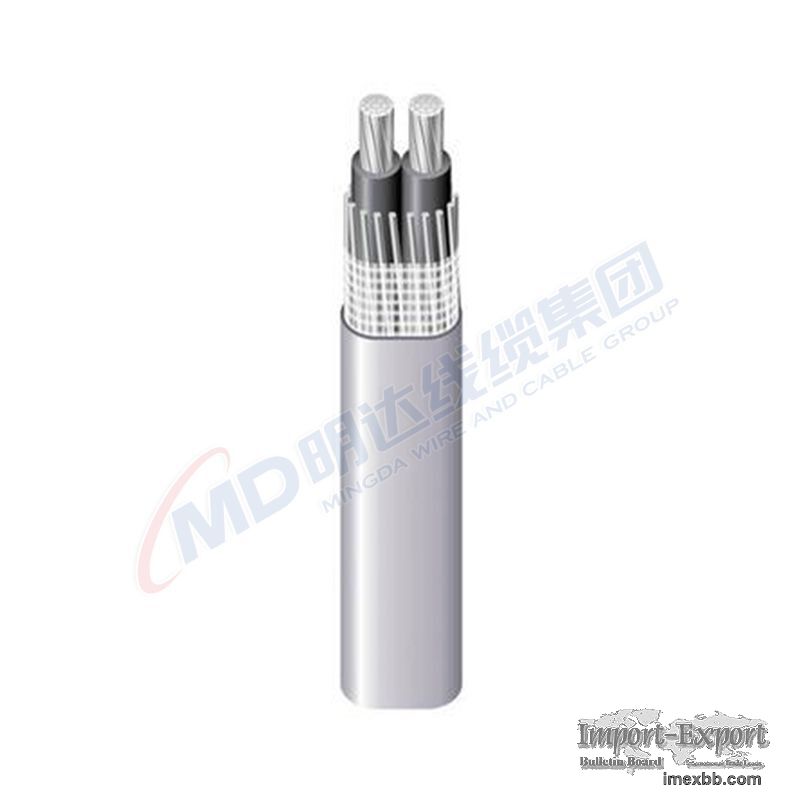

8000 Series Aluminium Alloy Conductor SER Service Entrance Cable

8000 Series Aluminium Alloy Conductor SER Service Entrance Cable
Product Description
8000 series aluminium alloy con , ductor is insulated with black XLPE. The
insulated conductors  are cabled together with AL-alloy concentric neutral
and fiberglass reinforced polyester tape binder, and oversheathed by grey
sunlight resistant PVC.
Construction: The stranded compacted 8000 series aluminium alloy conductor is
insulated with black XLPE. The insulated conductors are cabled together with
AL-alloy concentric neutral and fiberglass reinforced polyester tape binder,
and oversheathed by grey sunlight resistant PVC.
Application: Mainly used to convey power from the Service drop to the meter
base to the distribution board. SEU can also be used in certain branch circuits
as permitted by 1999 NEC. It is used in wet or dry locations.
Rated Voltage：600V.
Operating Temperature: Max permissible continuous operating temperature of
conductor shall not exceed 90℃.
Standard: UL 44 and UL 854,Federal Specification J-C-30B or other standards
required by customers.
