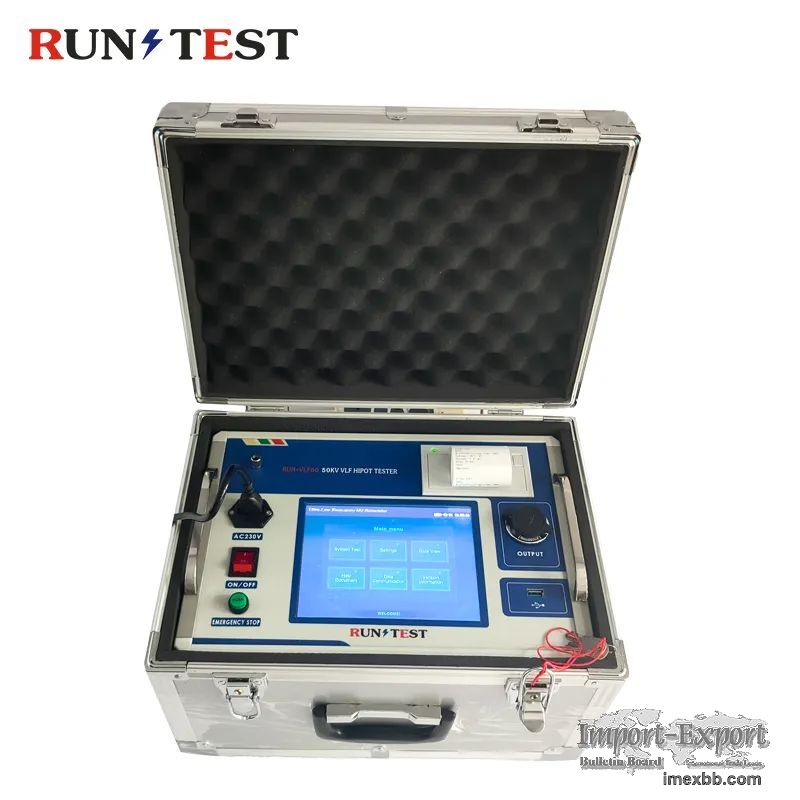

80Kv Very Low Frequency High Voltage Generator AC Hipot Generator

ITEM: RUN-VLF50
Vlf hipot test set is particularly suitable for the withstand voltage test of
electrical equipment (e.g.: power cables, power capacitors, large- and medium-
sized generators and Motors, etc.) with large insulation equivalent
capacitance.
Advantage: 1. 30kv /50kv/60kv/80kv are available
2.  Fast shipping and good after-sale service
Service: The instrument will be repaired and replaced free of charge for
product quality problems within one year from the date of purchase, and will
provide lifetime warranty and
technical services. If you find any abnormalities or malfunctions in the
instrument, please contact the company in time to arrange the most convenient
solution for you.
Main features of this ac hipot tester
1. The VLF rated voltage is less than or equal to 50kV adopts a single-
connection structure (one booster); the VLF rated voltage is larger than 50kV
adopts a series structure (two boosters are connected in series), which greatly
reduces the overall weight and enhances the load capacity. The two boosters can
be used separately for VLF of low voltage level.
2. Current, voltage, and waveform data are all directly sampled from the high-
voltage side, so the data is accurate.
3. With over-voltage protection function, when the output exceeds the set limit
voltage value, the instrument will stop, the action time is less than 20ms.
4. With over-current protection function: designed as high and low voltage dual
protection, the high voltage side can be accurately shut down according to the
set value; when the current on the low voltage side exceeds the rated current,
the shutdown protection will be performed, and the action time is less than
20ms.
5. The high-voltage output protection resistor is built in the booster body, so
there is no need to connect a protection resistor outside.
6. Due to the high and low voltage closed-loop negative feedback control
circuit, the output has no capacity increase effect.

Minimum Order: 1 sets
